Building a palletizing line often starts with a more basic question: do you buy a complete conveyor-connected packaging line, or build it up from separate conveyor modules? The four products here cover both directions. One APACKS package combines piston filling, capping, labeling, and a 30-foot stainless conveyor. Two In-Line Packaging Equipment labelers integrate pressure-sensitive wrap labeling with powered conveyors. A TECHTONGDA chain plate conveyor offers a compact, adjustable conveyor section for smaller assembly work. The listed range spans USD 1,166.22 to USD 48,500.00, which makes the choice about scope as much as budget.
Quick take
For a one-package conveyor-connected line, the APACKS system is the broadest option. For wrapping labels around containers and adding a 9-foot powered conveyor to an existing line, either In-Line Packaging Equipment Model 700 unit does that job; the two units are close in configuration and price. For a small, adjustable conveyor section, the TECHTONGDA chain plate unit is the compact choice.
Listed-price comparison
| Product | Listed price | Price bar |
|---|---|---|
| APACKS 2 Head Piston Filling Bottling Line | USD 48,500.00 | |
| In-Line Packaging Equipment Pressure Sensitive Wrap Bottle Labeler, Labeling | USD 25,500.00 | |
| In-Line Packaging Equipment Inline Pressure Sensitive Wrap Around Bottle Labeler | USD 24,875.00 | |
| 110V 3.9-inch W Chain Plate Conveyor Adjustable for Bottle Cap Packaging Assembly Line | USD 1,166.22 |
Decision matrix
- Choose the APACKS line if you need filling, capping, labeling, and conveying in a single setup, and you have space for a 30-foot conveyor.
- Choose an In-Line Packaging Equipment labeler if you already have filling and capping and only need wrap labeling, a label reel, and a stainless powered conveyor.
- Choose the TECHTONGDA conveyor if your process is smaller, uses bottles, bottle caps, or small parts, and needs an adjustable-height conveyor module that can be paired with existing labeling, coding, or capping equipment.
Product notes

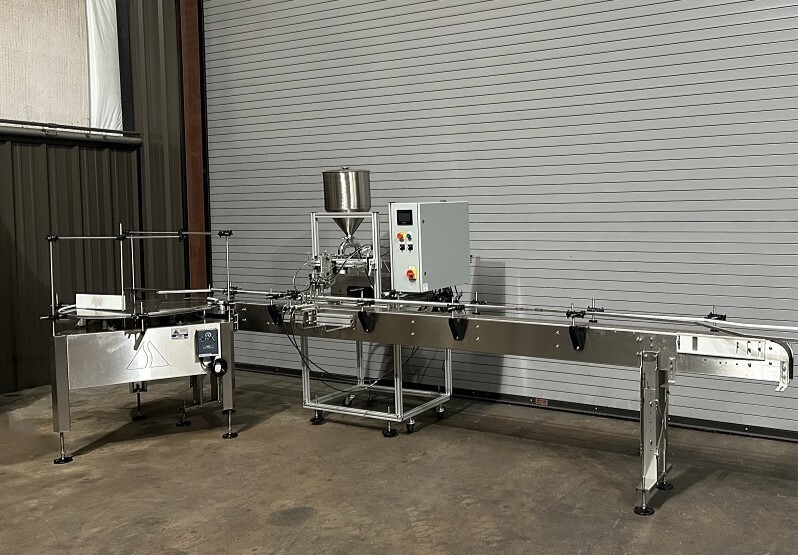

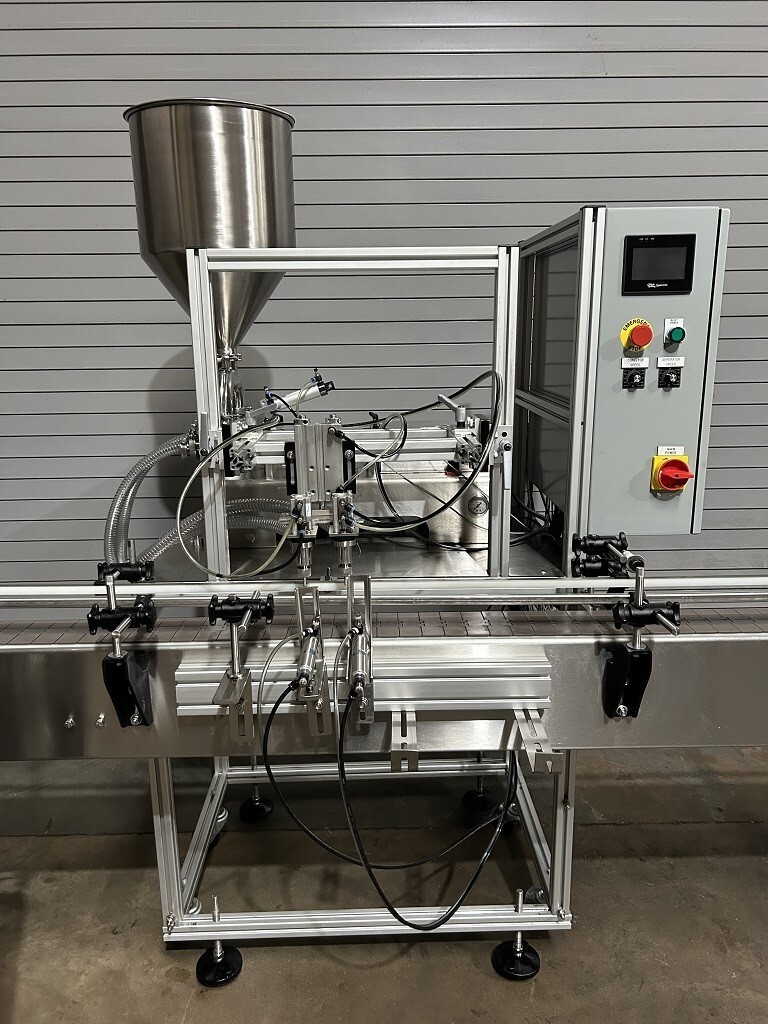

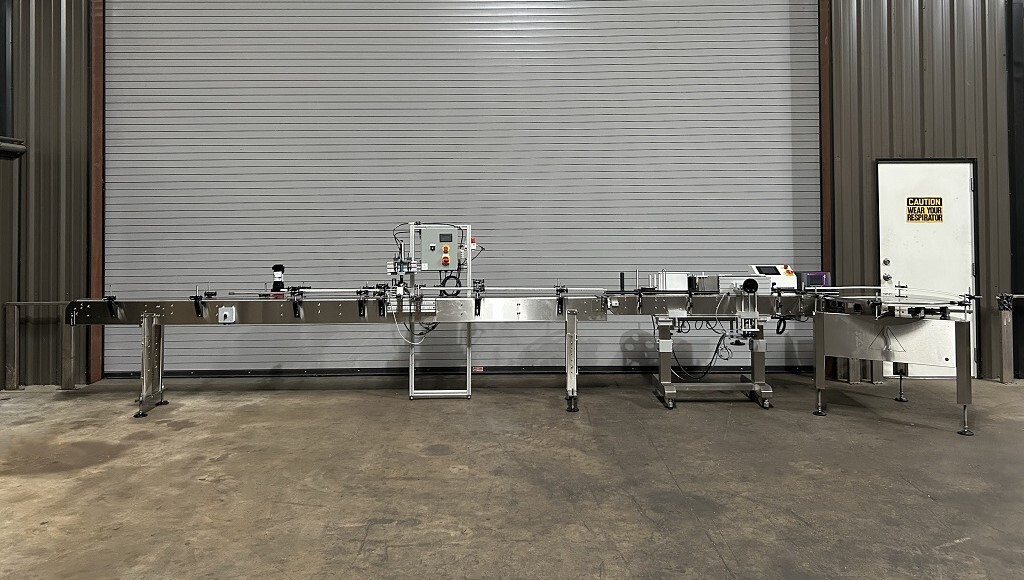

APACKS 2 Head Piston Filling Bottling Line
The APACKS package is a used, U.S.-made complete bottling line: a 2-head piston filler, a pneumatic capper, a labeler, and a 4.5-inch by 30-foot stainless bottling conveyor system. It last handled 2 oz. products at 20-24 BPM, includes capping chucks for 13 mm, 18 mm, and 24 mm caps, and runs on 115V / 60 Hz / 1 phase. This is the only product here that bundles filling, capping, and labeling with conveying, so it fits a facility that wants one integrated line rather than separate modules. The trade-off is footprint and price: a 30-foot conveyor plus full line equipment needs major floor space, and this unit sits at the top of the price range.

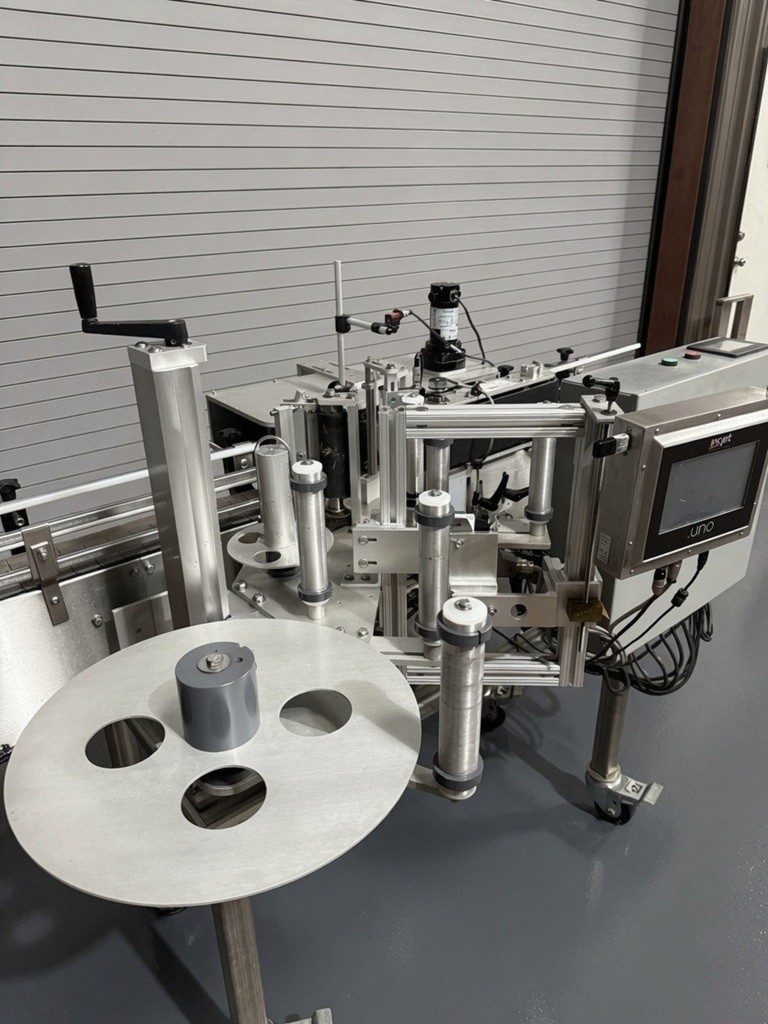

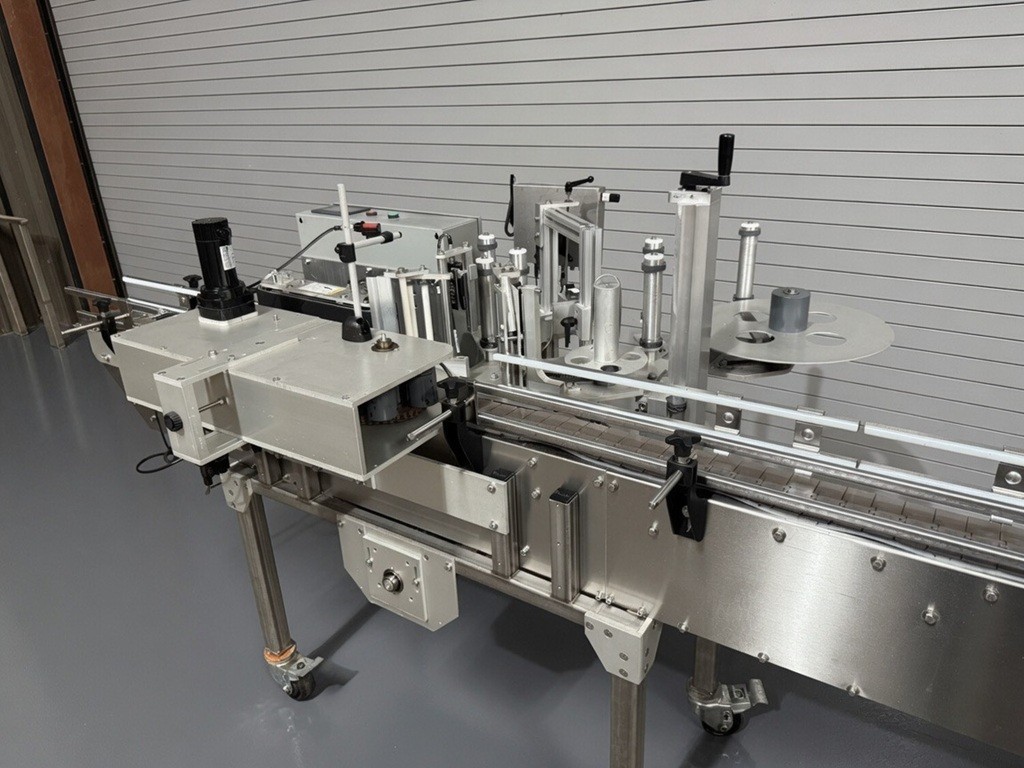

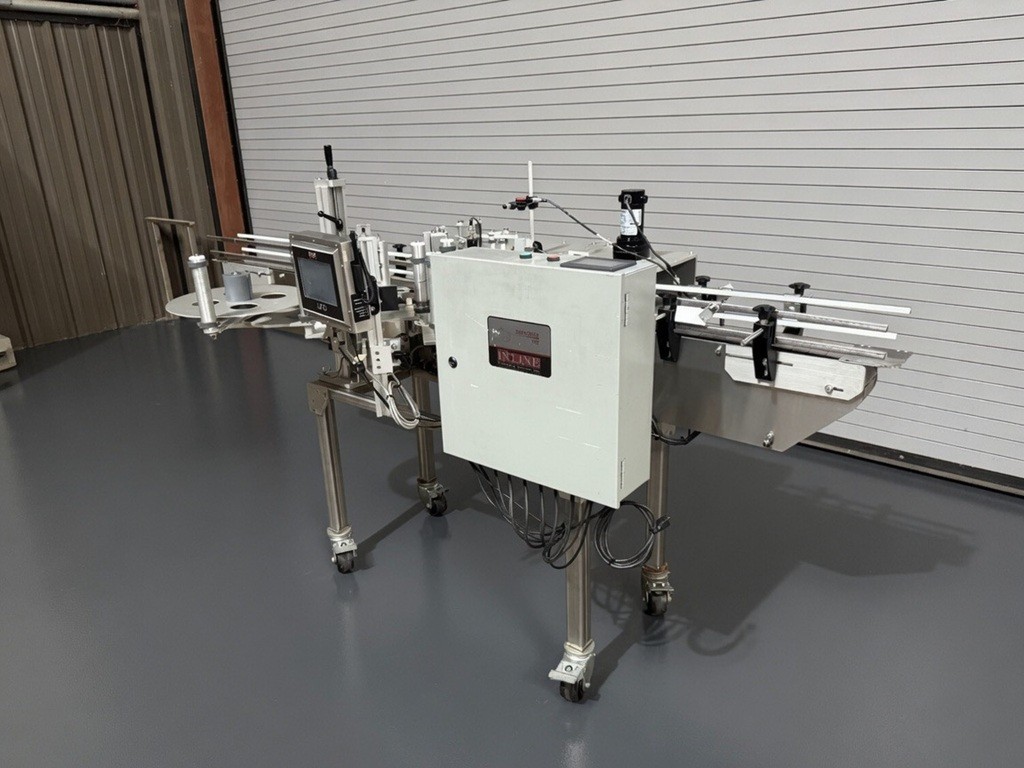

In-Line Packaging Equipment Pressure Sensitive Wrap Bottle Labeler, Labeling
This Model 700 labeler is a pressure-sensitive wrap labeling machine with a 4.5-inch by 9-foot stainless powered conveyor, a pivoting label head, trunnion roller wrap station, 16-inch label reel, product photo-eye detection, and variable speed controls. Speeds can reach 100+ CPM based on product specifications, with a maximum 6-inch label height. It is a used unit, and the other In-Line Model 700 shares the same core design and U.S. origin details. It does not include filling or capping, so plan for it as a labeling stage inside a larger line. The unit runs on 120V / 50/60 Hz / 1 phase at 6 amps.

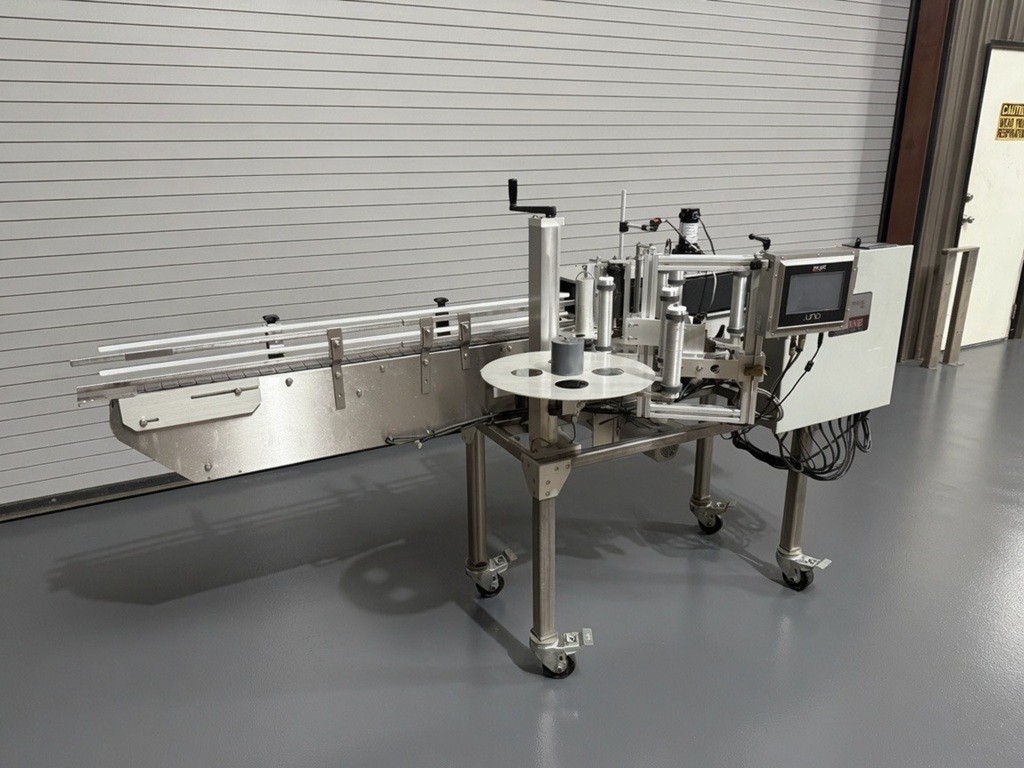

In-Line Packaging Equipment Inline Pressure Sensitive Wrap Around Bottle Labeler
The second Model 700 wrap-around labeler is the lower-priced of the two In-Line units. It includes the same core features: a 4.5-inch by 9-foot stainless powered conveyor, 16-inch label reel, wrap station, photo-eye detection, and 120V electrical specs. Both labelers are used U.S.-made machines with nearly identical configurations, so the practical difference is the price and how each unit is outfitted. Its limitation is the same as the other labeler: it is a labeling module, not a source of filling or capping, so you still need those stations elsewhere in your line.

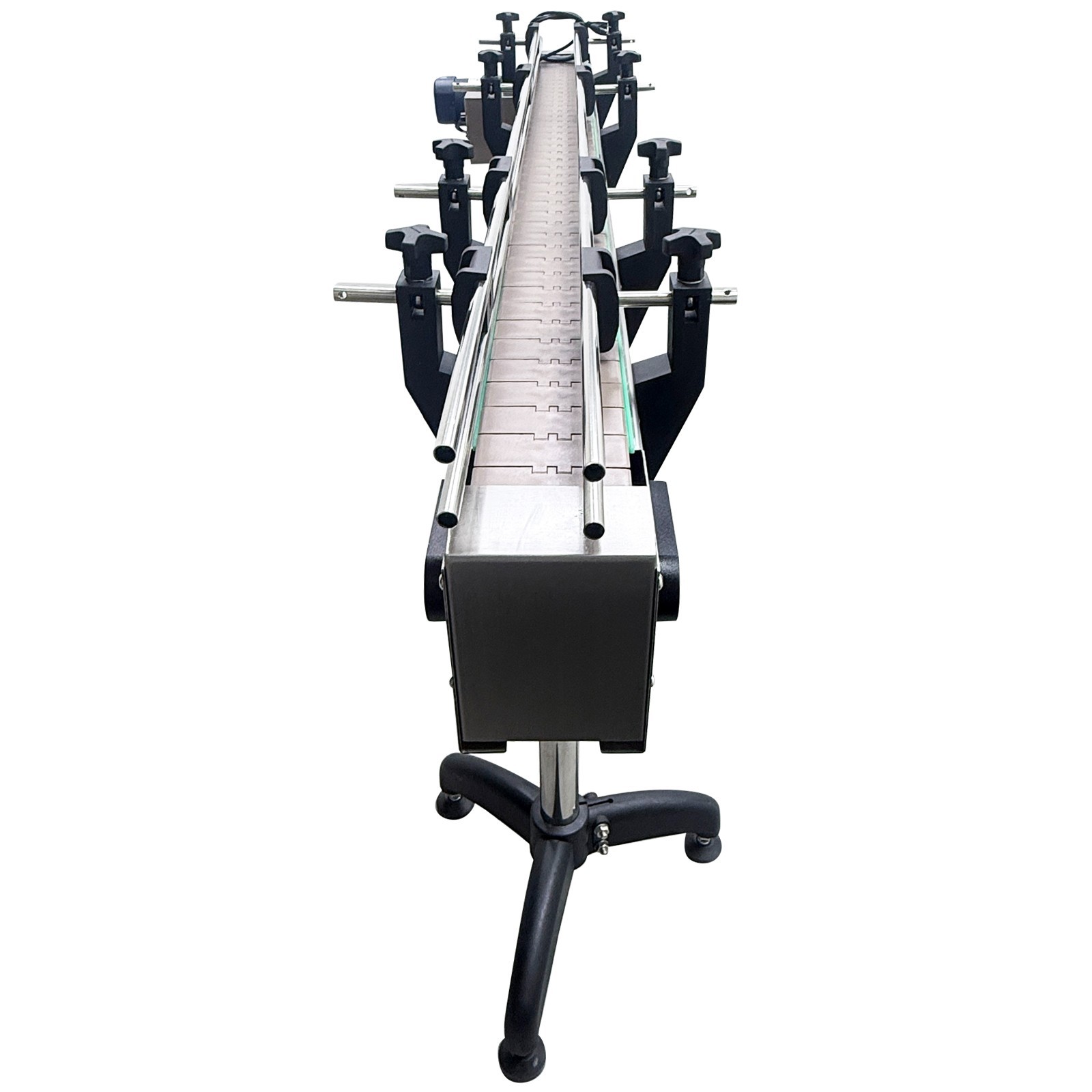

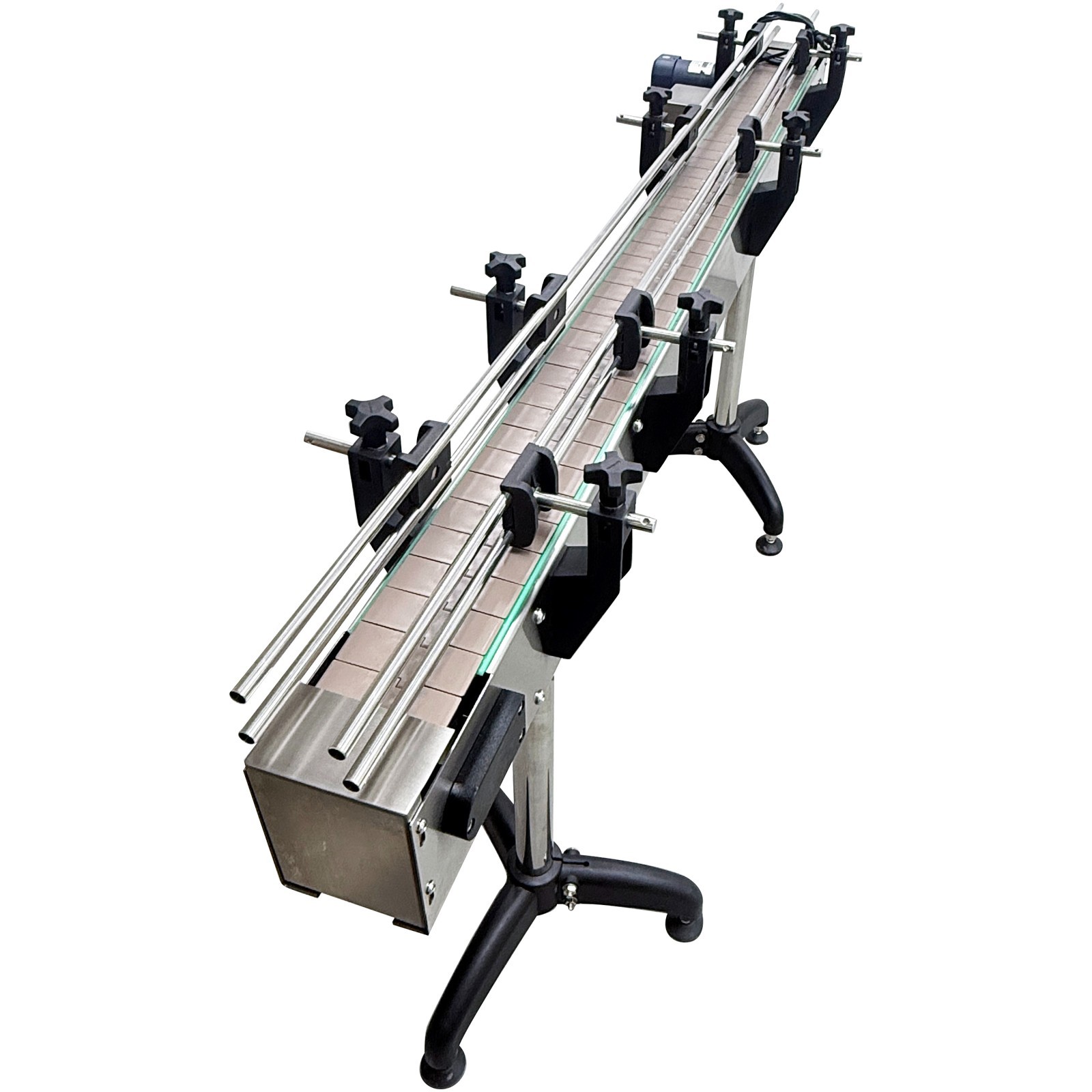

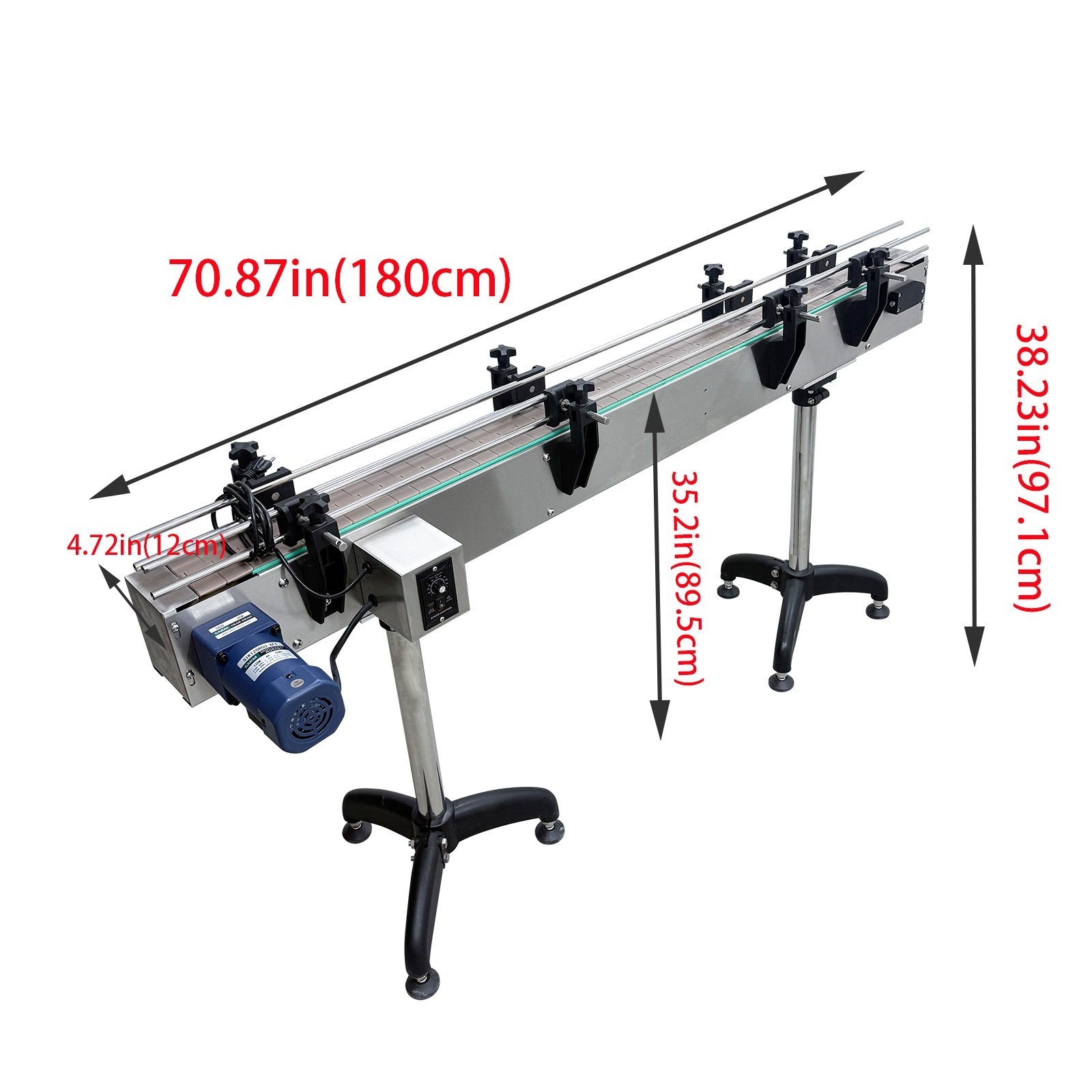

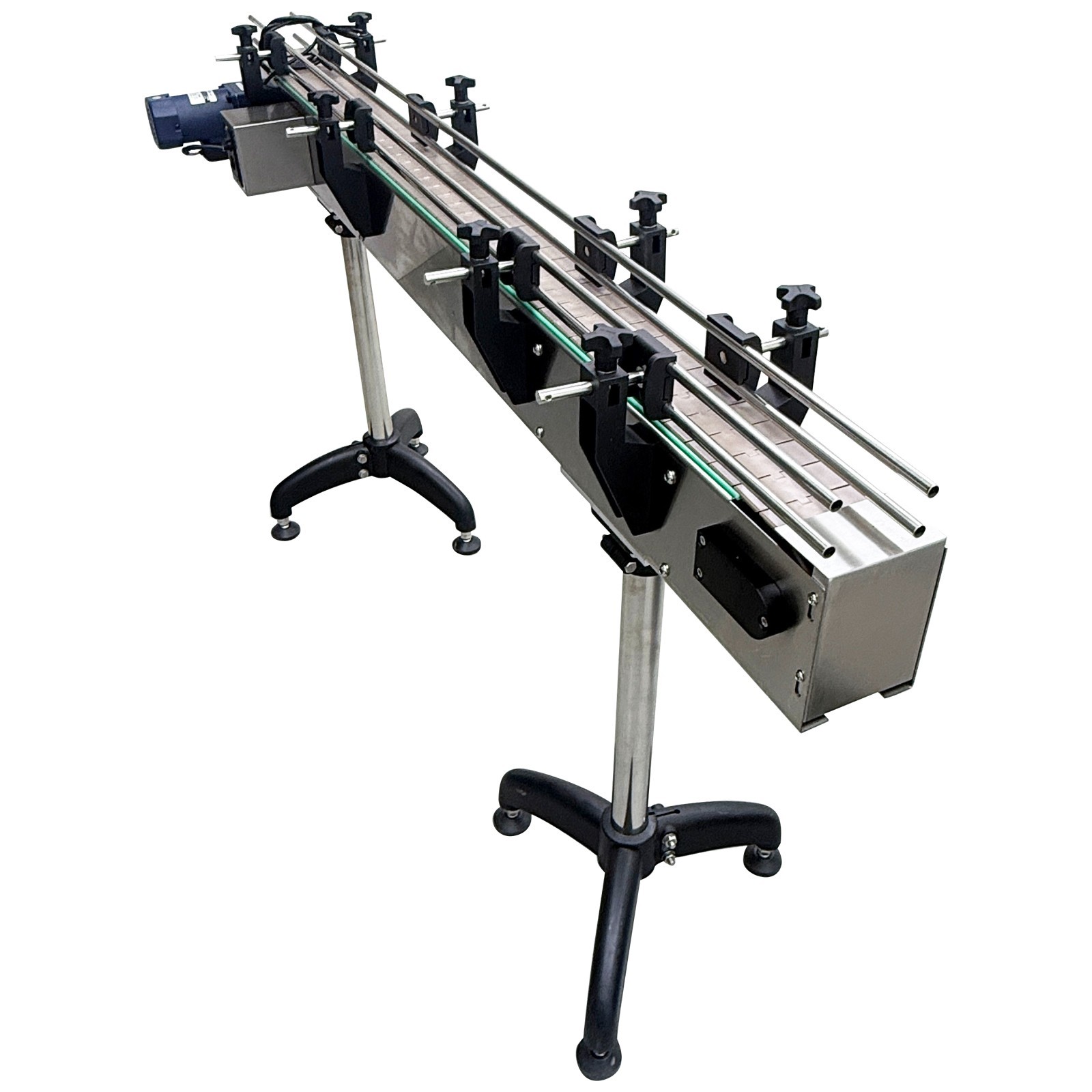

110V 3.9-inch W Chain Plate Conveyor Adjustable for Bottle Cap Packaging Assembly Line
TECHTONGDA's conveyor is the only new unit here and the only small-scale module. The chain plate conveyor measures 167.5 cm in length and 3.94 inches in width, runs on 110V at 120W, and has an adjustable platform height from the ground. It is built for glass bottles, plastic bottles, bottle caps, and metals, and it can be integrated with labeling machines, coding machines, capping machines, and other equipment. That makes it useful as a compact conveyor section or workstation bridge. The limitation is lane width: at about 10 cm, it leaves little room for wide containers.
Final recommendation by use case
Choose the APACKS 2 Head Piston Filling Bottling Line when you want the full filler-capper-labeler-conveyor sequence in one system. Choose the lower-priced In-Line Packaging Equipment Model 700 labeler for wrap labeling on a powered conveyor, or its sibling unit if it better matches your line configuration. Choose the TECHTONGDA chain plate conveyor when you need an adjustable, compact conveyor module for bottles, caps, or small parts on an existing assembly line.
