Building a palletizing line means making the conveyor section work as the bridge between packaging and palletizing. The challenge is that the word conveyor covers very different machinery: a tape sealing station, a narrow chain plate belt for bottle caps, a long variable-speed PVC belt, and a two-section roller line for fruit sorting. Choosing the wrong one can stall your product flow, so start by asking what you are moving and how much floor space you have.
Quick take: If you are setting up or upgrading a packaging conveyor line, the four options below split into two approaches. The TECHTONGDA chain plate and PVC belt conveyors are powered conveyors for smaller items and assembly tasks. The automatic tape sealing machine is a heavy-duty case-sealing station, while the Boston Gear 700 Series is a much larger used system for sorting and packaging operations. Match the conveyor to the product you run.
Listed Price Comparison
| Product | Price | Price Bar | Key Spec |
|---|---|---|---|
| Automatic Tape Sealing Machine | USD 2,200.00 | 1/4HP tape sealing with 31.5\" roller platform | |
| TECHTONGDA Chain Plate Conveyor | USD 1,166.22 | 120W chain plate, adjustable platform height | |
| Boston Gear 700 Series Fruit Sorting Line | USD 22,784.00 | Two 15' x 5' roller conveyor sections with 1hp gear motors | |
| TECHTONGDA PVC Belt Conveyor | USD 1,542.45 | 4.5m PVC belt with variable speed and 35KG max load |
Decision Matrix
| Option | Best for | Consider If |
|---|---|---|
| Automatic Tape Sealing Machine | Sealing cartons as they pass through a case conveyor line | You need a dedicated taping station to seal cases as they pass |
| TECHTONGDA Chain Plate Conveyor | Bottle cap, bottle, or small metal component assembly | You want a compact conveyor to integrate with labeling or capping machines |
| Boston Gear 700 Series Fruit Sorting Line | Large fruit sorting or packaging operations | You have floor space for a large roller conveyor system |
| TECHTONGDA PVC Belt Conveyor | Transporting lightweight packaged goods across a packaging line | You need to feed inkjet, laser marking, or printing marking equipment |
Product Notes

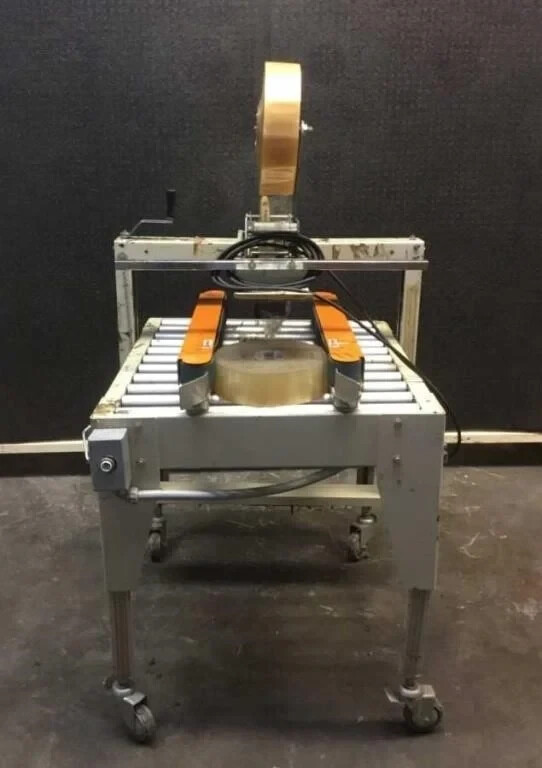

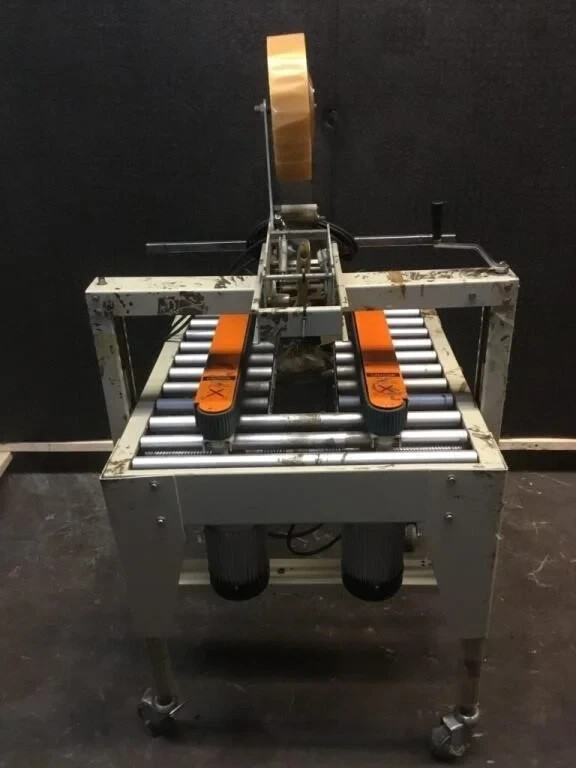

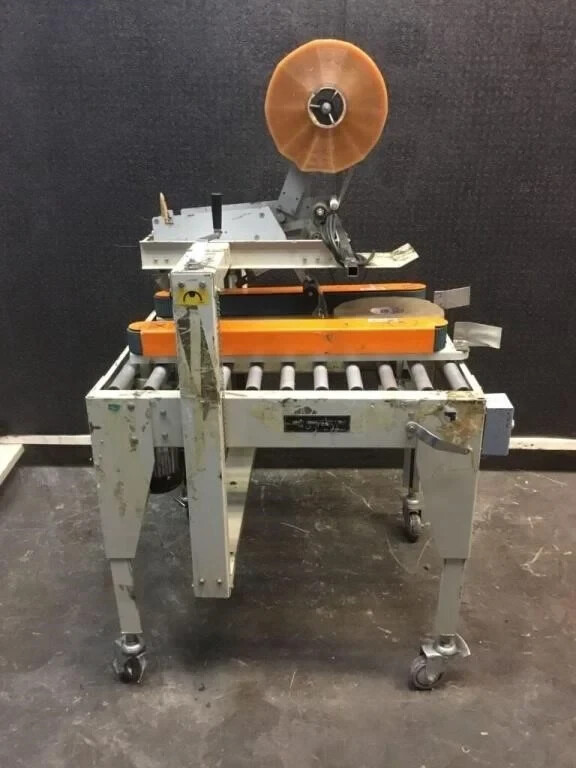

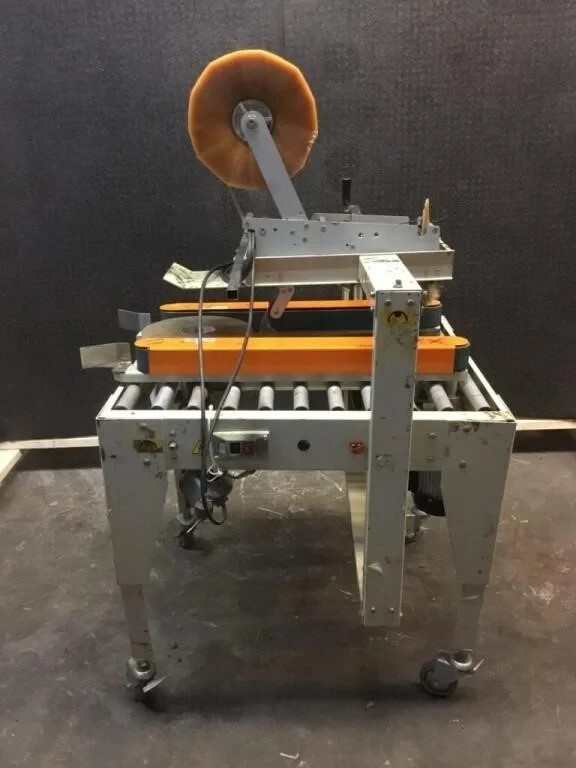

#### Automatic Tape Sealing Machine
Choose this if you are looking for a heavy-duty carton sealing step built into a conveyor line. The 1/4HP machine runs on 100/110V single phase, and its roller platform measures 31.5 inches long by 24 3/4 inches wide, so it is sized for sealed cases moving through a packaging workstation. It comes from the United States and is a used unit. The specifications center on taping and sealing rather than long-distance transport; if you need an extended conveyor to move cases across a large facility, this is a dedicated sealing station more than a long conveyance solution.
#### TECHTONGDA Chain Plate Conveyor
This TECHTONGDA chain plate conveyor is the lowest-priced option in this group at USD 1,166.22. It runs on 110V with 120W of power, and the platform height is adjustable, which makes it practical for integrating with labeling machines, coding machines, capping machines, or other bottle cap packaging equipment. The chain plate is 167.5cm long and 10cm wide. For glass bottles, plastic bottles, bottle caps, and metal items, it gives a compact assembly-line surface. The limitation is the narrow 10cm belt width; it is designed for small or single-file components rather than wide cases or heavy pallet loads.
#### Boston Gear 700 Series Fruit Sorting Line
This is the largest-scale option at USD 22,784.00. The Boston Gear 700 Series is a used roller conveyor system for food processing or lab/pharma applications, and the system includes two conveyor sections with overall dimensions of 15 feet by 5 feet by 8.5 feet per section. The drive comes from 1 hp gear motors at a 40:1 ratio, so the system is built to move substantial product volume. The tradeoff is scale and condition: at 4,500 lbs and 180 inches long, it demands significant floor space and planning for a full sorting or packaging line. It is not a plug-in bench conveyor; it is a major line component.
#### TECHTONGDA PVC Belt Conveyor
This TECHTONGDA PVC belt conveyor is a mid-priced transport option at USD 1,542.45. The 4.5m (177 inch) belt sits at a 29.5-inch height and has an electronic speed regulator with stable speed control, which is helpful when you need to feed inkjet printers, laser marking machines, or print marking machines. The PVC belt is anti-slip, wear-resistant, and anti-static, and the max load capacity is 35KG. That load limit is the main constraint: it suits bottles, caps, bags, cartons, and smaller products, not heavy pallets or dense bulk loads. If your line moves lightweight packaged items over a long span, this is a practical fit.
Final Recommendation by Use Case
- For a bottle or cap assembly line, the TECHTONGDA chain plate conveyor is the practical place to start, especially if you need to line up with capping or coding machines.
- For long transport runs with marking equipment, the TECHTONGDA PVC belt conveyor gives you a conveyor surface for items moving to marking equipment.
- For a carton sealing station inside a case line, the automatic tape sealing machine adds a tape sealing step to your conveyor workflow.
- For a large produce or lab/pharma operation, the Boston Gear 700 Series is the system-level choice.
