When you're putting together a palletizing line, the conveyor determines how smoothly filled bags, bottles, or boxes move to the next station. The real decision tension: do you need a complete two-section sorting line, a long variable-speed belt, an adjustable assembly conveyor, or a compact transport unit? The listed prices in this group run from $358 for a mini belt to $22,784 for a Boston Gear sorting line, so the choice has a major budget impact.
Quick take
If you need a full line, the Boston Gear 700 Series is the heavyweight choice. For station-to-station feeding, the TECHTONGDA chain plate conveyor is a practical fit. For a longer transport run, the TECHTONGDA PVC belt conveyor is the practical pick. For small, lightweight moves, the Mini Conveyor keeps the footprint tiny.
Listed price comparison
| Product | Listed price | Price bar |
|---|---|---|
| Boston Gear 700 Series Fruit Sorting & Packaging Line 2 Conveyor Sections | USD 22,784.00 | |
| TECHTONGDA 110V 4.5m PVC Belt Conveyor Variable Speed Packaging Conveyer For Transport Line | USD 1,542.45 | |
| TECHTONGDA 110V 3.9"W Chain Plate Conveyor Adjustable for Bottle Cap Packaging Assembly Line | USD 1,166.22 | |
| Mini Conveyor Transport Production Line Transport Packaging | USD 358.00 |
Decision matrix
| Use case | Conveyor to consider | Key specs that matter |
|---|---|---|
| Full two-section sorting/packaging line | Boston Gear 700 Series | Two roller sections, 1 hp gear motors, used |
| Bottle/cap assembly with height adjustments | TECHTONGDA 3.9"W chain plate | 110V, 120W, adjustable platform height |
| Long run with variable speed | TECHTONGDA 4.5m PVC belt | 4.5m length, 250W motor, 35KG max load |
| Compact lightweight transport | Mini Conveyor | 150mm customizable PVC belt, 20W, 0-15m/min |
Conveyor notes

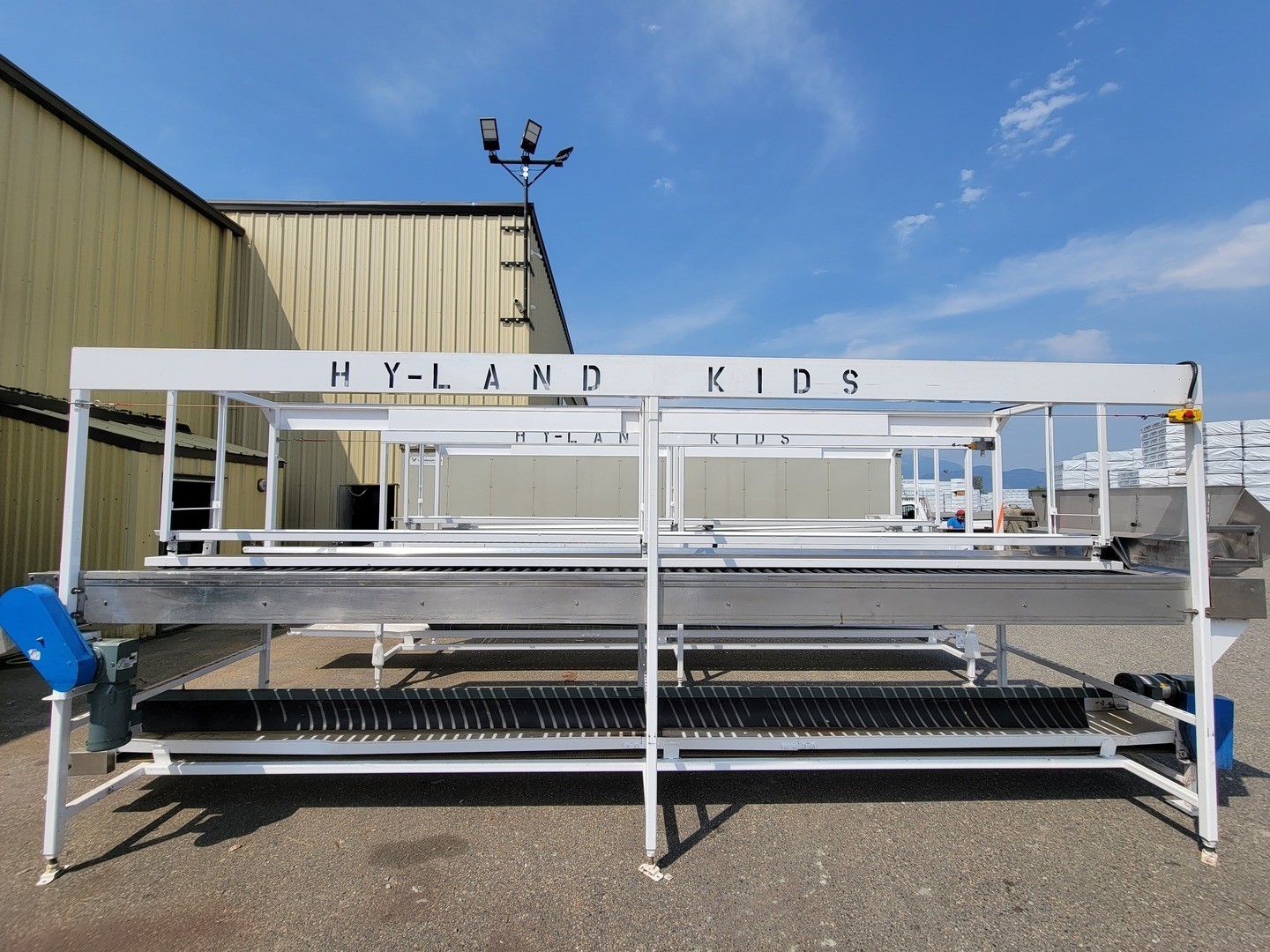

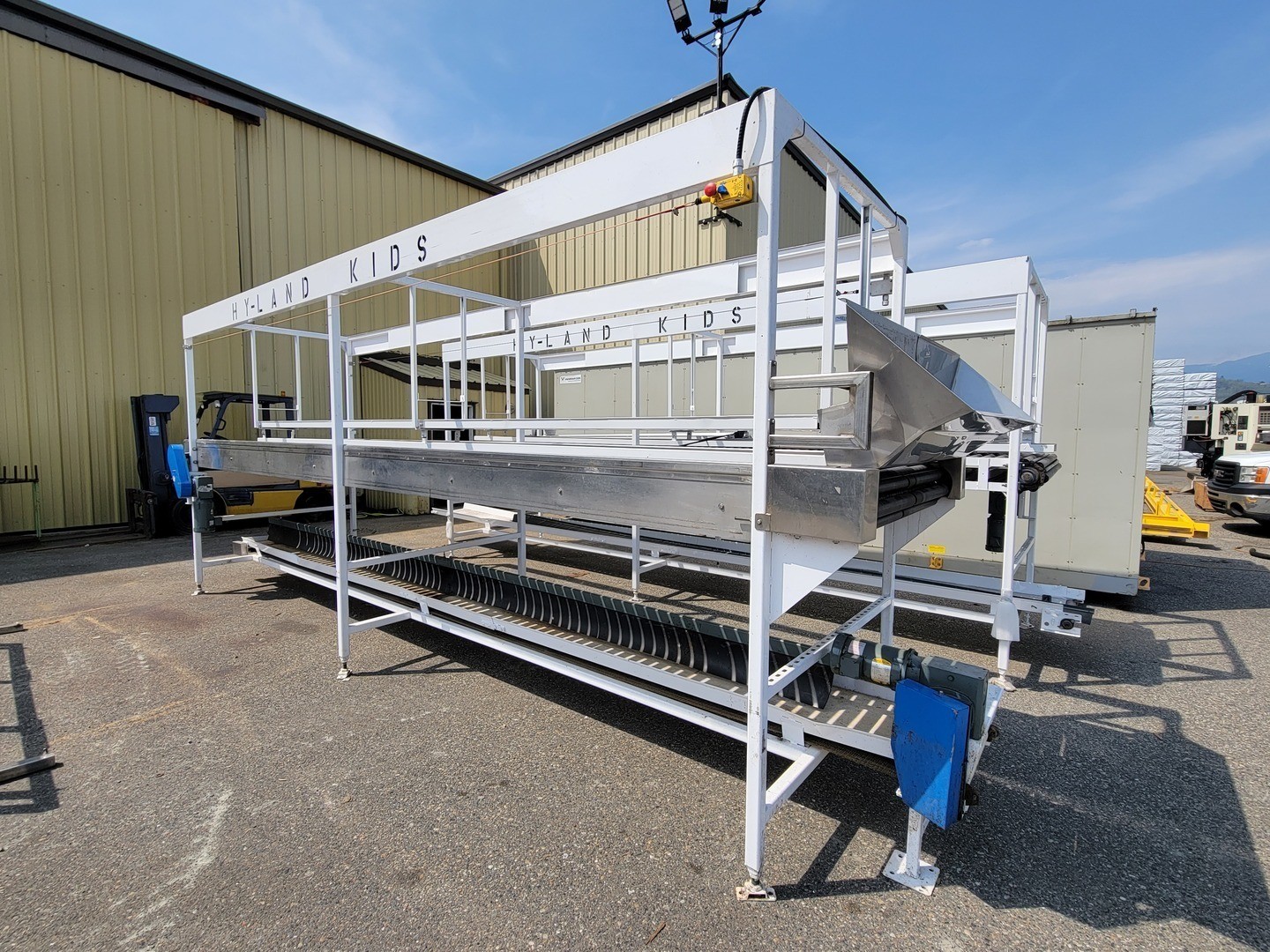

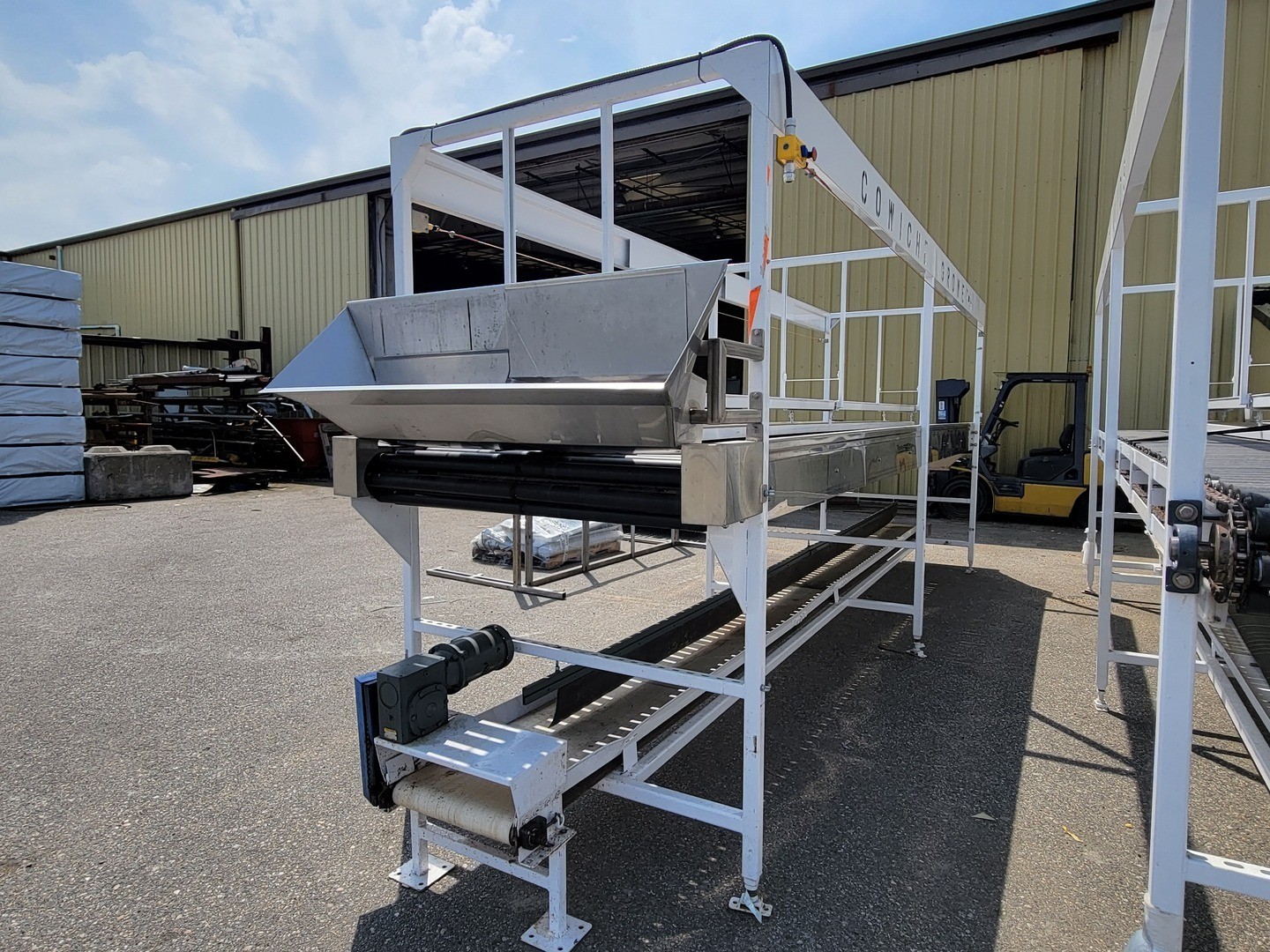

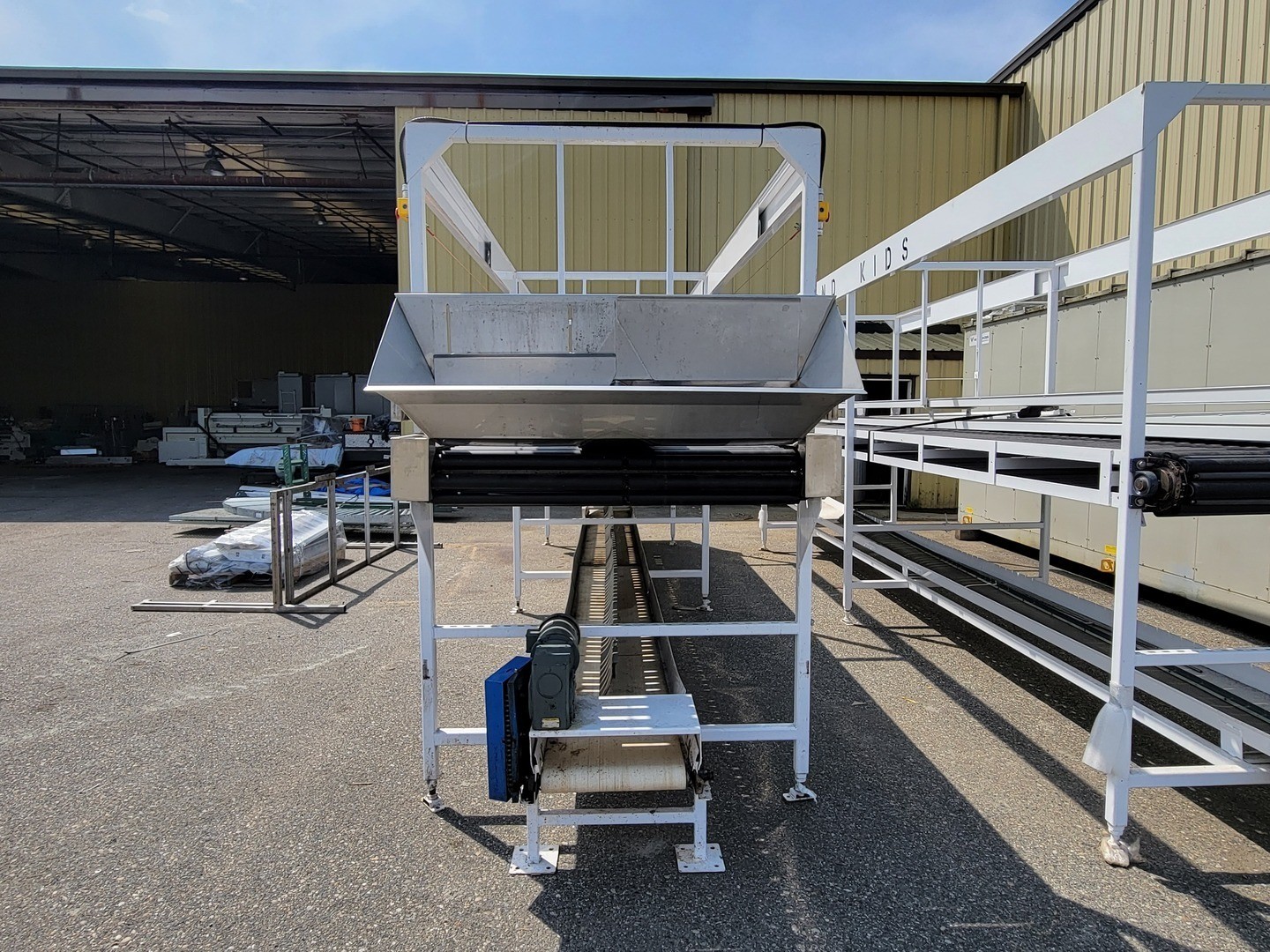

Boston Gear 700 Series Fruit Sorting & Packaging Line 2 Conveyor Sections
This is the option when the need is a full, used line rather than a single belt. It comes as two roller-conveyor sections, each with overall dimensions of 15' x 5' x 8.5', and the drive setup includes gear motors with 1 hp and a 40:1 ratio. The intended application is food processing or lab/pharma, which makes it worth considering for those environments. The limit is physical: it weighs 4,500 lbs and the overall dimension is 102(H) x 60(W) x 180(L) inches.
TECHTONGDA 110V 3.9"W Chain Plate Conveyor Adjustable for Bottle Cap Packaging Assembly Line
If your palletizing line feeds narrow containers, this chain plate belt is worth measuring against your station heights. It runs on 110V, uses a 120W motor, and the 10cm-wide, 167.5cm-long belt is sized for those items. The platform height is adjustable, which is the standout feature because it lets you match the conveyor to labeling, coding, or capping equipment at different heights. The limitation is width: with a 3.9"W belt, wider cartons or bundled packages are beyond its intended path.

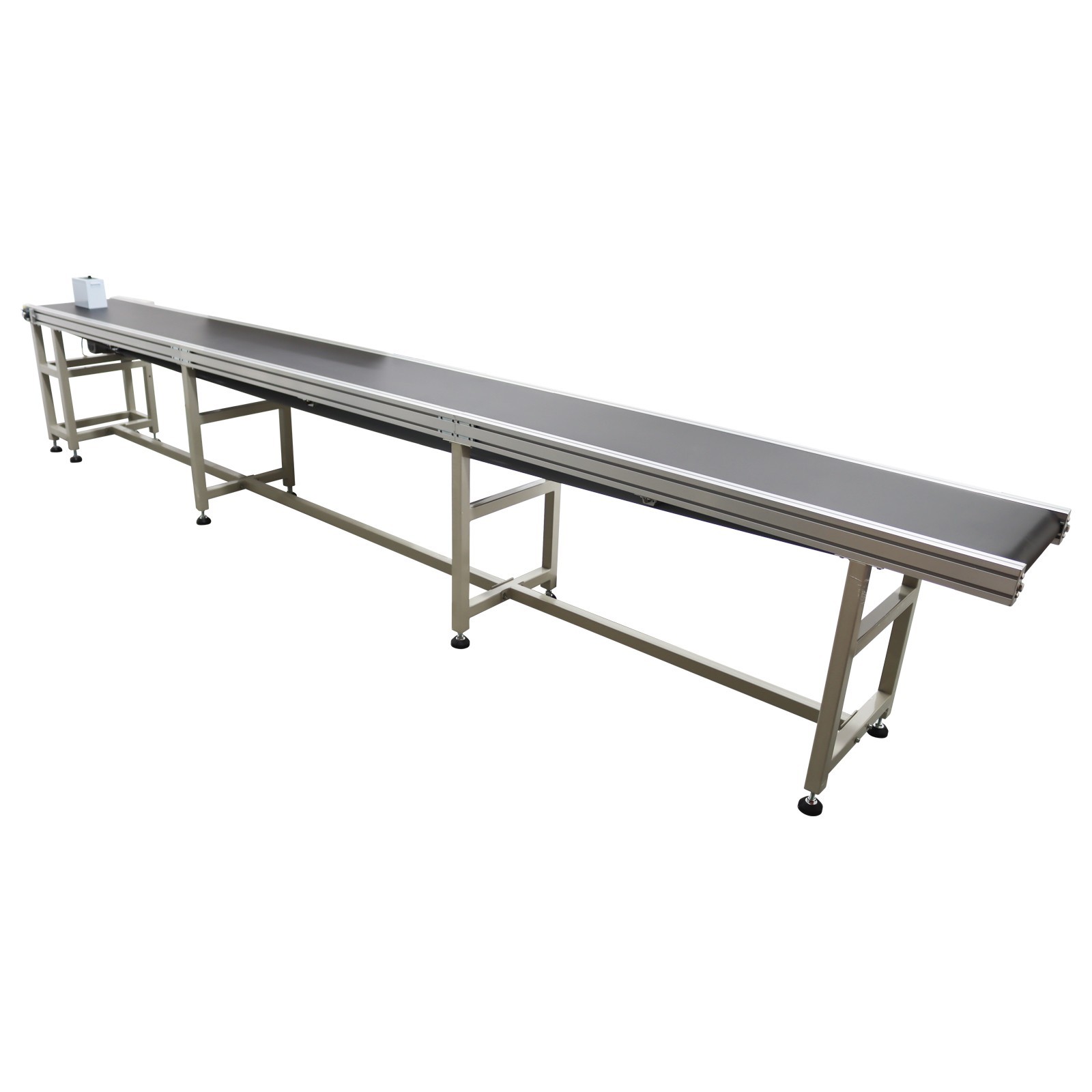

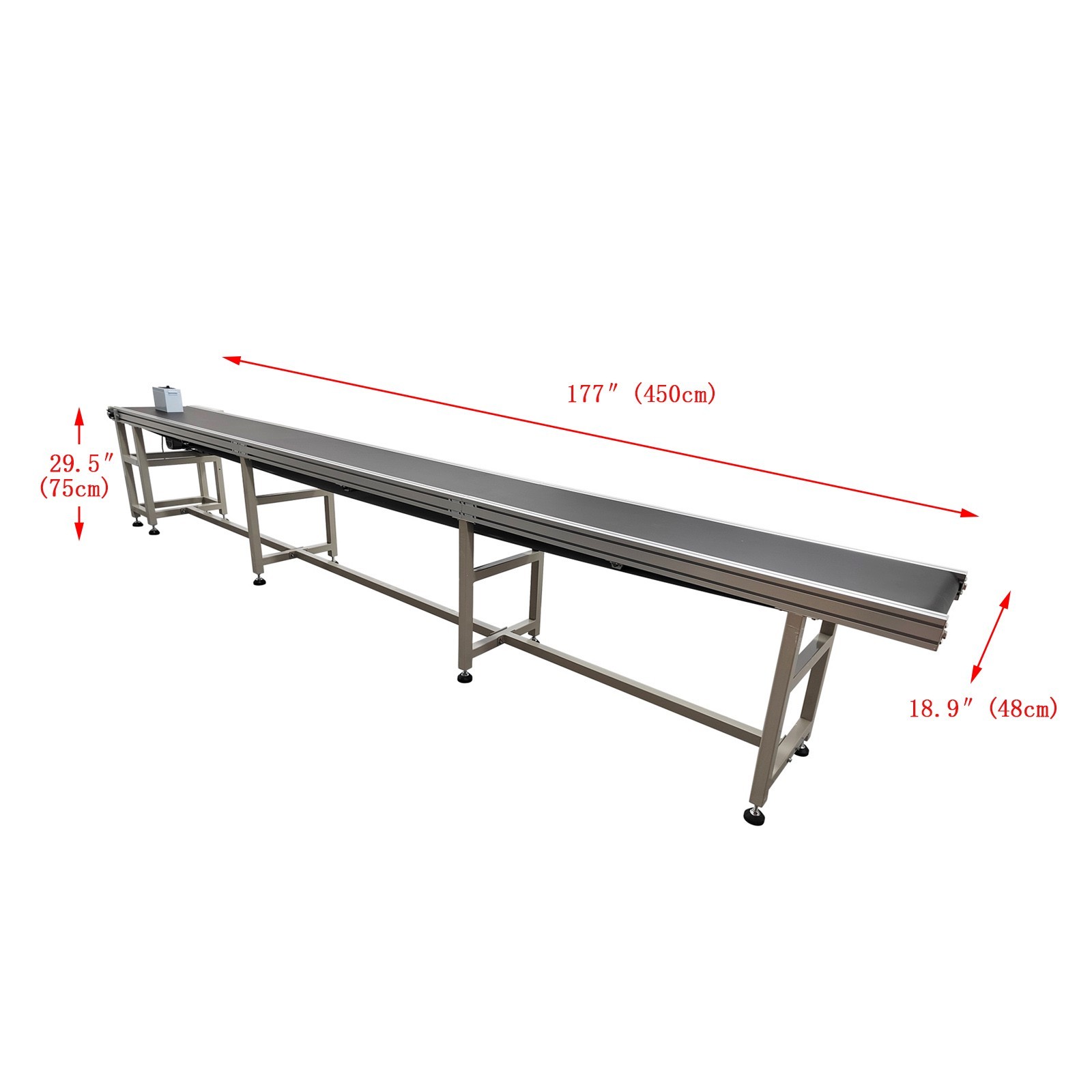

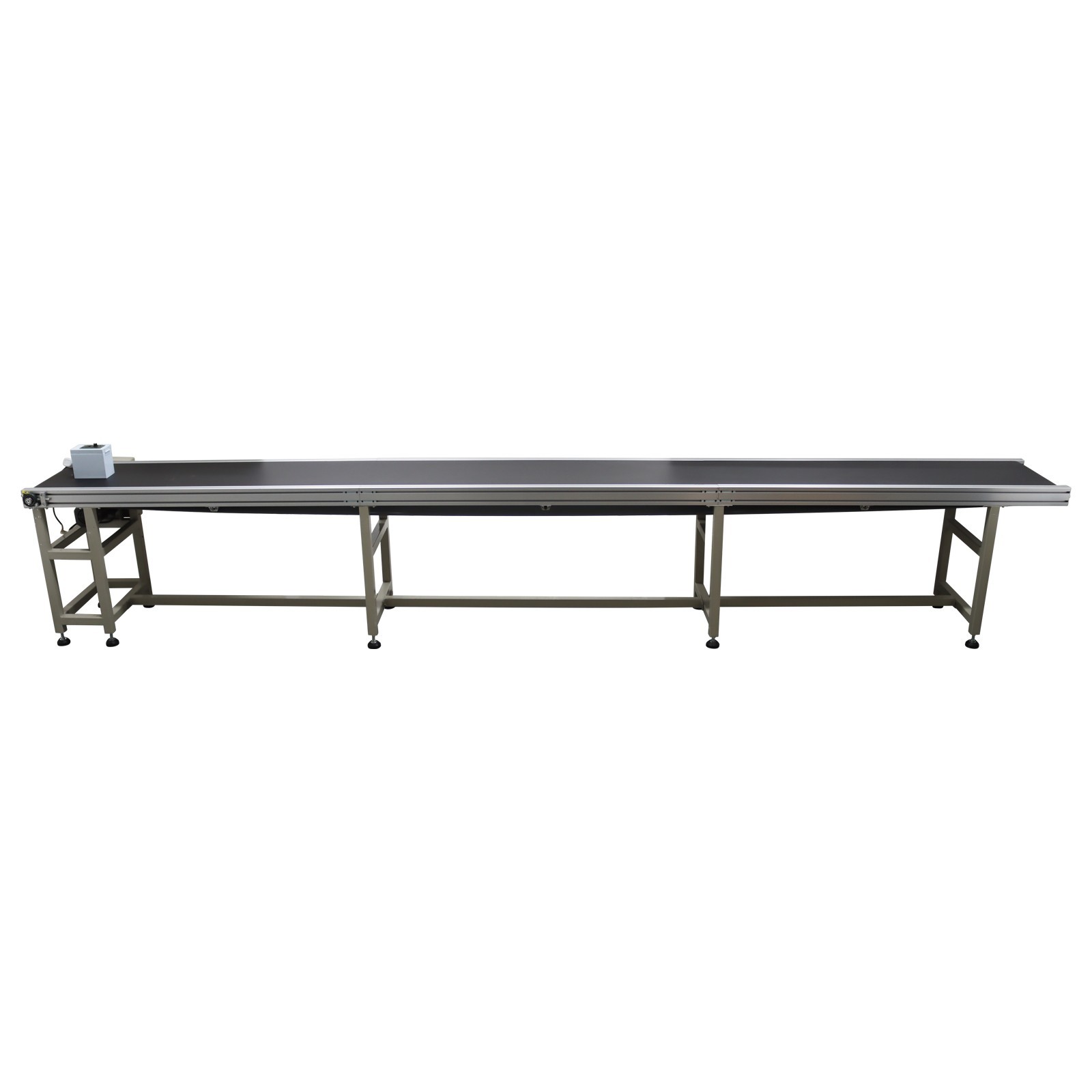

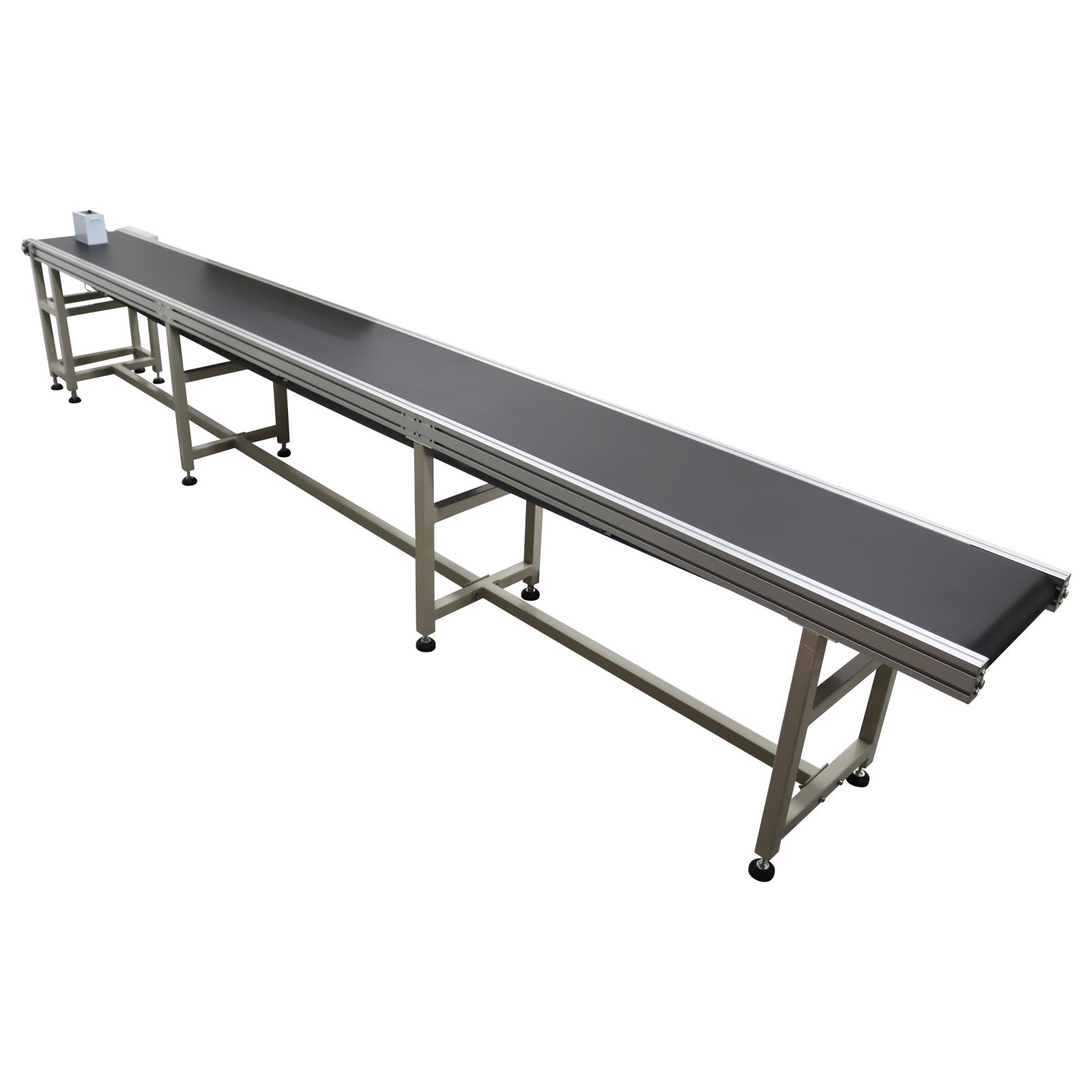

TECHTONGDA 110V 4.5m PVC Belt Conveyor Variable Speed Packaging Conveyer For Transport Line
This TECHTONGDA model is the long-transport answer among the three new conveyors. The PVC belt runs 4.5m (177") and the iron and aluminum alloy frame holds a 250W adjustable-speed motor. Its max load of 35KG puts it in the light-to-medium range, and the belt is anti-slip, wear-resistant, and anti-static. That makes it a reasonable match for moving bottles, caps, metals, plastic bags, paper boxes, cartons, and labels toward downstream equipment. The limitation is the same 35KG ceiling: it is a transport conveyor, not a heavy pallet-load mover.

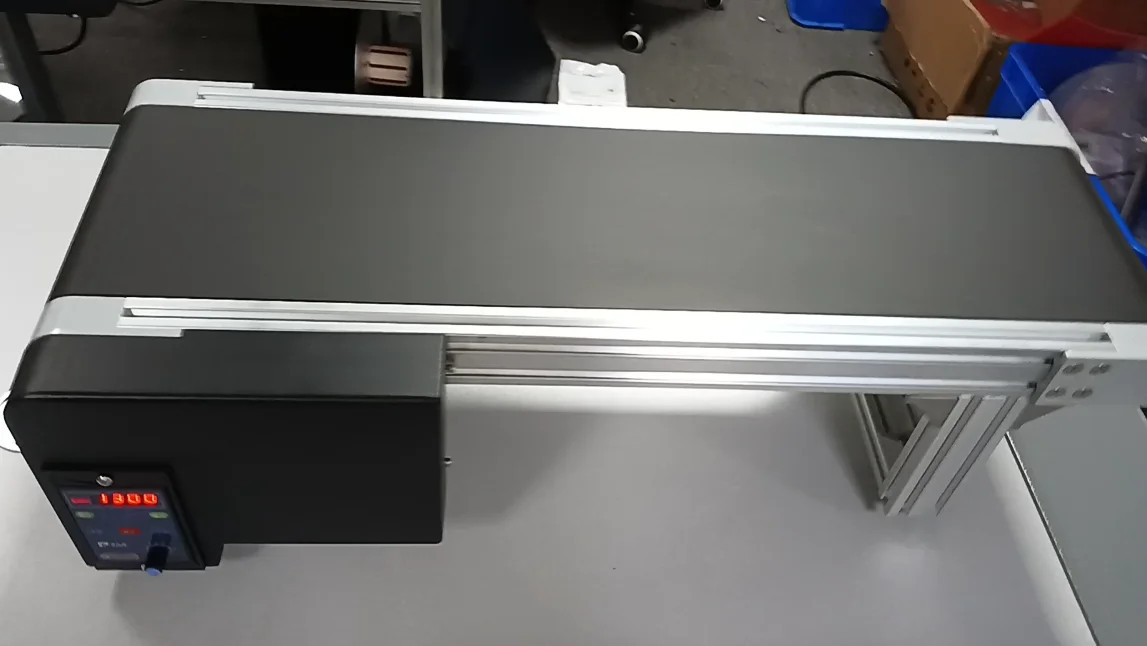

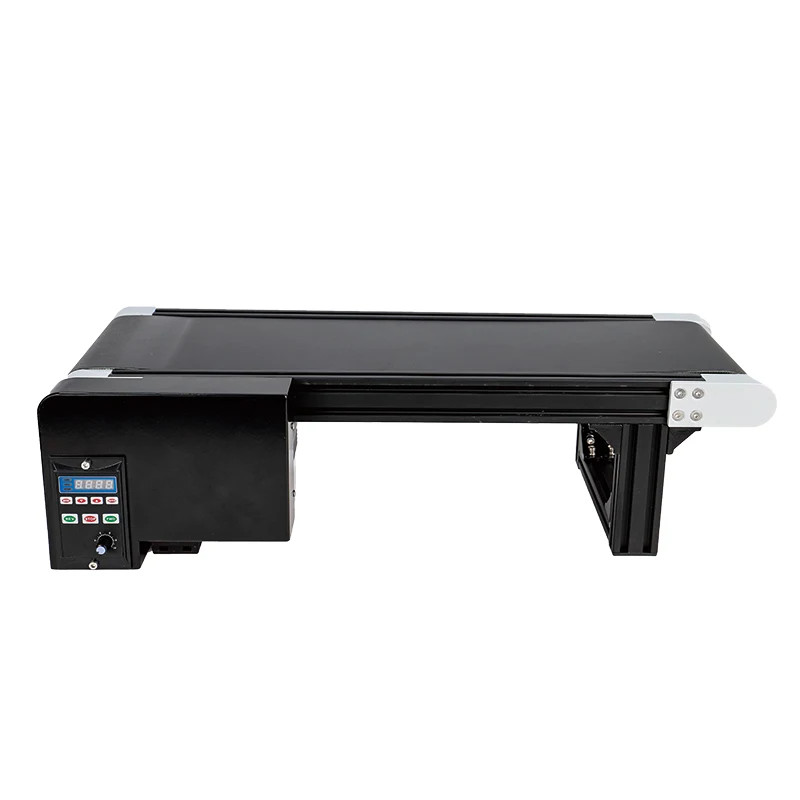

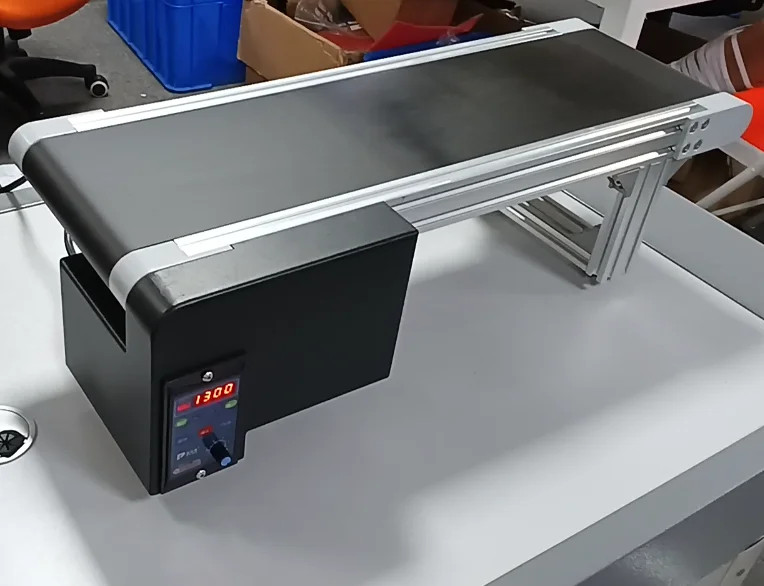

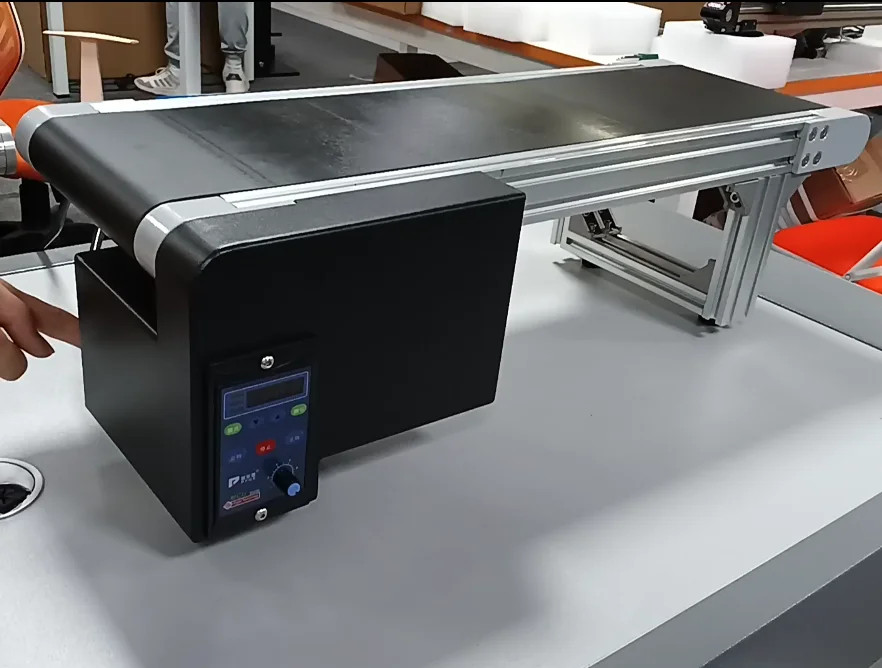

Mini Conveyor Transport Production Line Transport Packaging
The most compact unit in this group is also the smallest overall footprint. It has a 150mm PVC belt with customizable length, a 220V/50Hz power supply, and a 20W maximum power consumption. The digital display speed controller gives a 0-15m/min speed range, and the 600 x 230 x 175mm body makes it useful for light transport near an inkjet printer or on a small packaging bench. The trade-off is capacity: the physical size, 7.5KG weight, and 20W motor all point to small items and short moves, not high-throughput palletizing.
Final recommendation by use case
For a full two-section sorting and packaging line, the Boston Gear 700 Series is the option to start with. For assembly stations, the TECHTONGDA chain plate conveyor is the match. For a long feed run, the TECHTONGDA PVC belt is the better fit. For a compact, lightweight task near a printer or packing bench, the Mini Conveyor is the easy pick.
