Quick take
Choosing a palletizing line conveyor usually comes down to belt length, speed control, and the type of goods moving across it. The four options here span a wide price range and very different jobs, from flat belts for assembly and packaging lines to a cleated take-away conveyor for finished bags. Listed prices range from $1,305.85 to $4,500.00, so the right pick depends on whether you need a short transport path, a longer run, or a vertical transfer.
What to look for
When you compare palletizing line conveyors, the first thing to check is the physical path: how long the belt is, how wide it is, and what weight it can carry. Speed adjustment is another major factor-some conveyors have a fixed or stepping speed range, while others offer continuous adjustment. Power supply matters too, because a 110V conveyor can plug into most standard outlets, while a three-phase 220V/380V unit requires a different electrical setup. Finally, look at the belt surface: a flat PVC belt suits boxes, bottles, and labels, while a cleated belt is better for holding bags or products on an incline or transfer point. The four options below show how these factors trade off against each other.
Listed price comparison
| Product | Listed price | Price bar |
|---|---|---|
| TECHTONGDA Flat Belt Conveyor 210cm x 40cm | USD 1,305.85 | |
| TECHTONGDA 216x12\" Flat Belt Conveyor | USD 2,446.99 | |
| TECHTONGDA 110V 4.5m PVC Belt Conveyor | USD 1,542.45 | |
| Stainless Steel Take Away Belt Conveyor | USD 4,500.00 |
Decision matrix
| Product | Best for | Keep in mind |
|---|---|---|
| TECHTONGDA 210cm Flat Belt | Compact assembly and packaging stations | 40cm belt width and adjustable 0-20m/min speed, but only 210cm long |
| TECHTONGDA 216x12\" Flat Belt | Long packaging runs with heavier items | 216in length and 50kg max load, but belt width is 30cm and speed is 4-18m/min |
| TECHTONGDA 110V 4.5m PVC Belt | Long transport on standard 110V power | 4.5m length and variable speed motor, but 35kg max load |
| Stainless Steel Take Away Belt | Lifting finished bags from packaging machines | Food-grade PP cleated belt and 304 stainless steel, but new open box and needs three-phase power |
Product notes

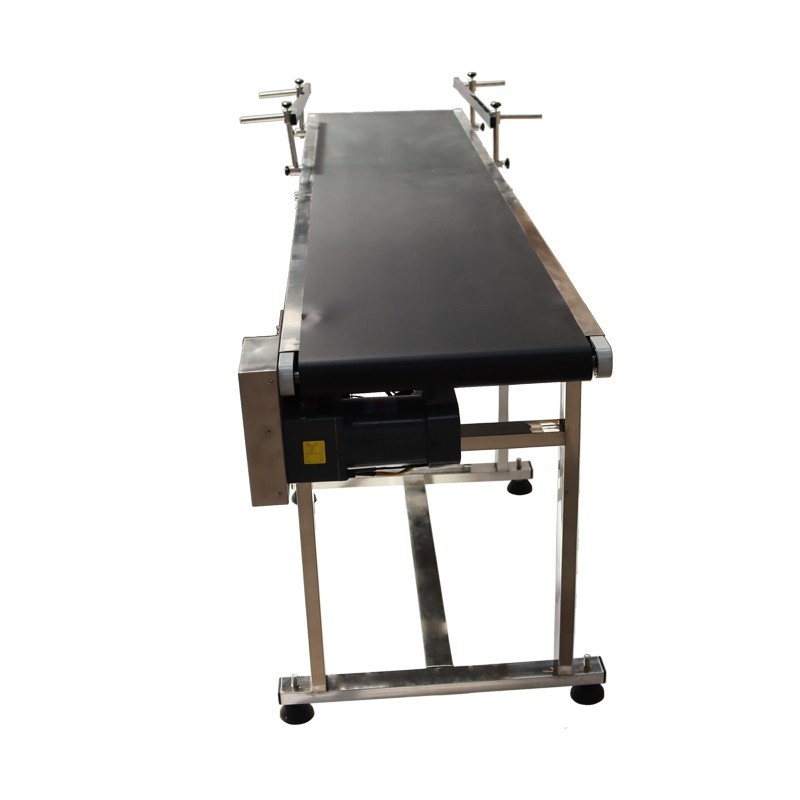

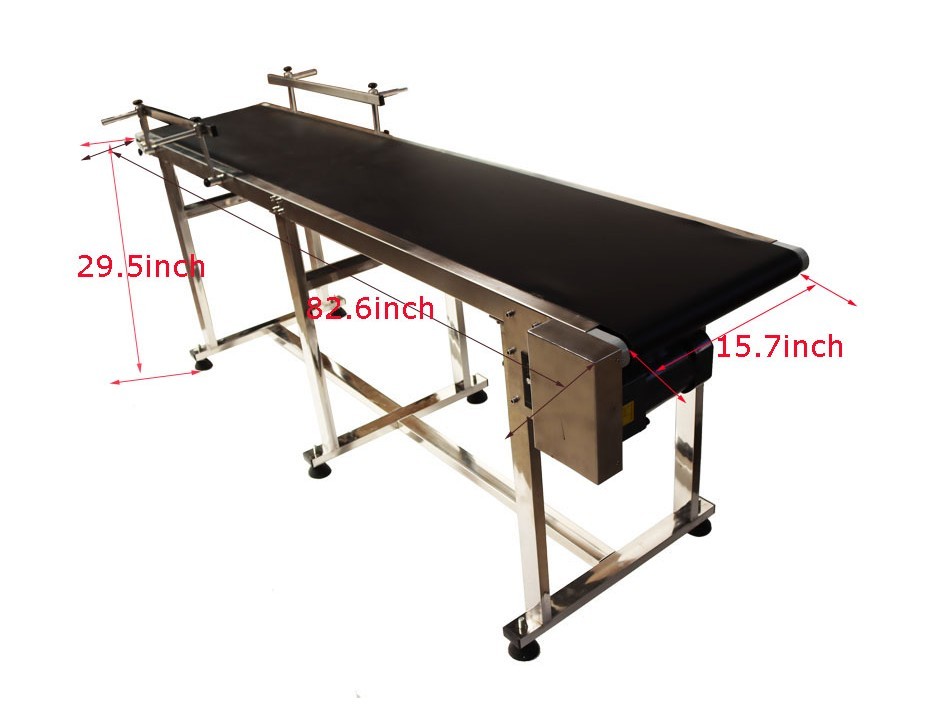

TECHTONGDA Flat Belt Conveyor 210cm x 40cm
The stainless steel body and thickened PVC belt make this a compact option for assembly and packaging tables. Its double guardrails are adjustable in height and width, which helps keep bottles, boxes, or parts from sliding off. Speed adjusts from 0 to 20m/min, and the foldable design makes storage easier when the line changes. The trade-off is the 210cm length: it suits a single workstation better than a long palletizing run. The 40cm belt width is worth checking against the widest item you plan to move.

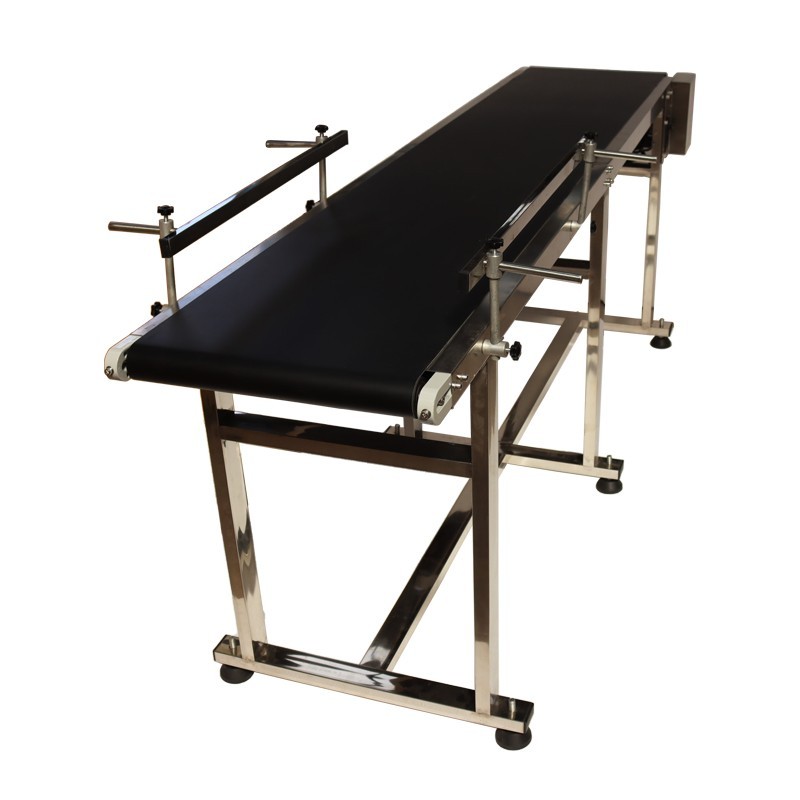

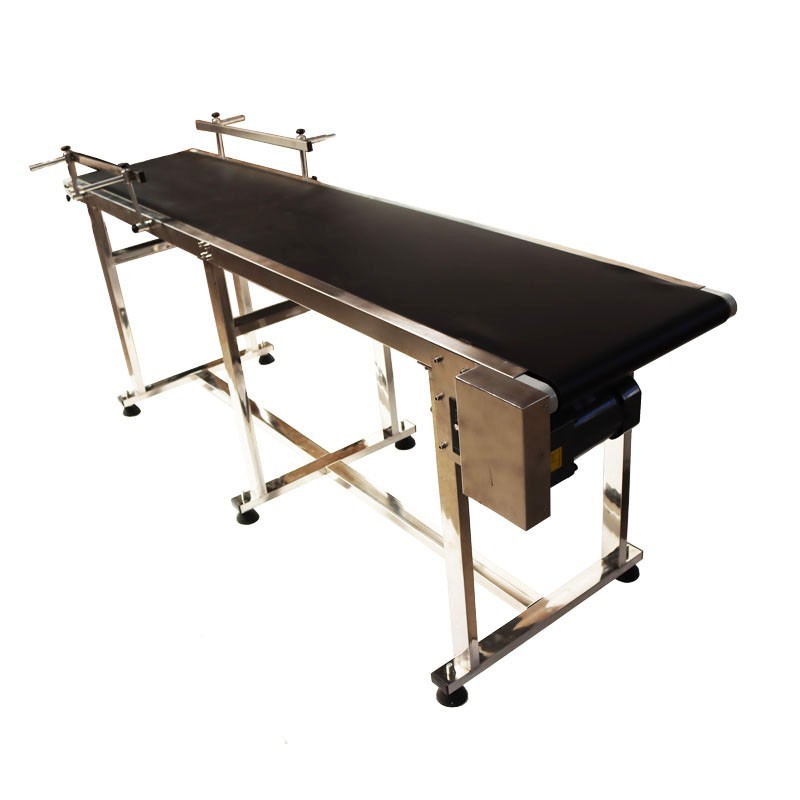

TECHTONGDA 216x12\" Flat Belt Conveyor
This model extends the transport path to 216 inches, which helps when products need to travel across a longer packaging or assembly line. It has a 50kg max loading capacity and a 370W motor, with speed adjustable from 4 to 18m/min. The stainless steel body and white PVC belt are easy to clean. The main limitation is the belt width: 11.8in (30cm) is narrower than the shorter TECHTONGDA flat belt's 40cm width, so wide cartons or trays may not fit. For long, narrow packages, this length and capacity combination is practical.
TECHTONGDA 110V 4.5m PVC Belt Conveyor
At 4.5 meters long, this variable-speed conveyor gives you a long transport path while running on standard 110V power. The iron and aluminum alloy frame is paired with a PVC belt that includes anti-slip, wear-resistant, and anti-static properties, which is useful for moving glass bottles, plastic caps, boxes, and labels. The adjustable speed motor helps match line pace, but the maximum load is 35kg, which is lower than the 50kg capacity of the 216x12\" model. This is a good fit for lighter goods and longer runs where speed control matters.

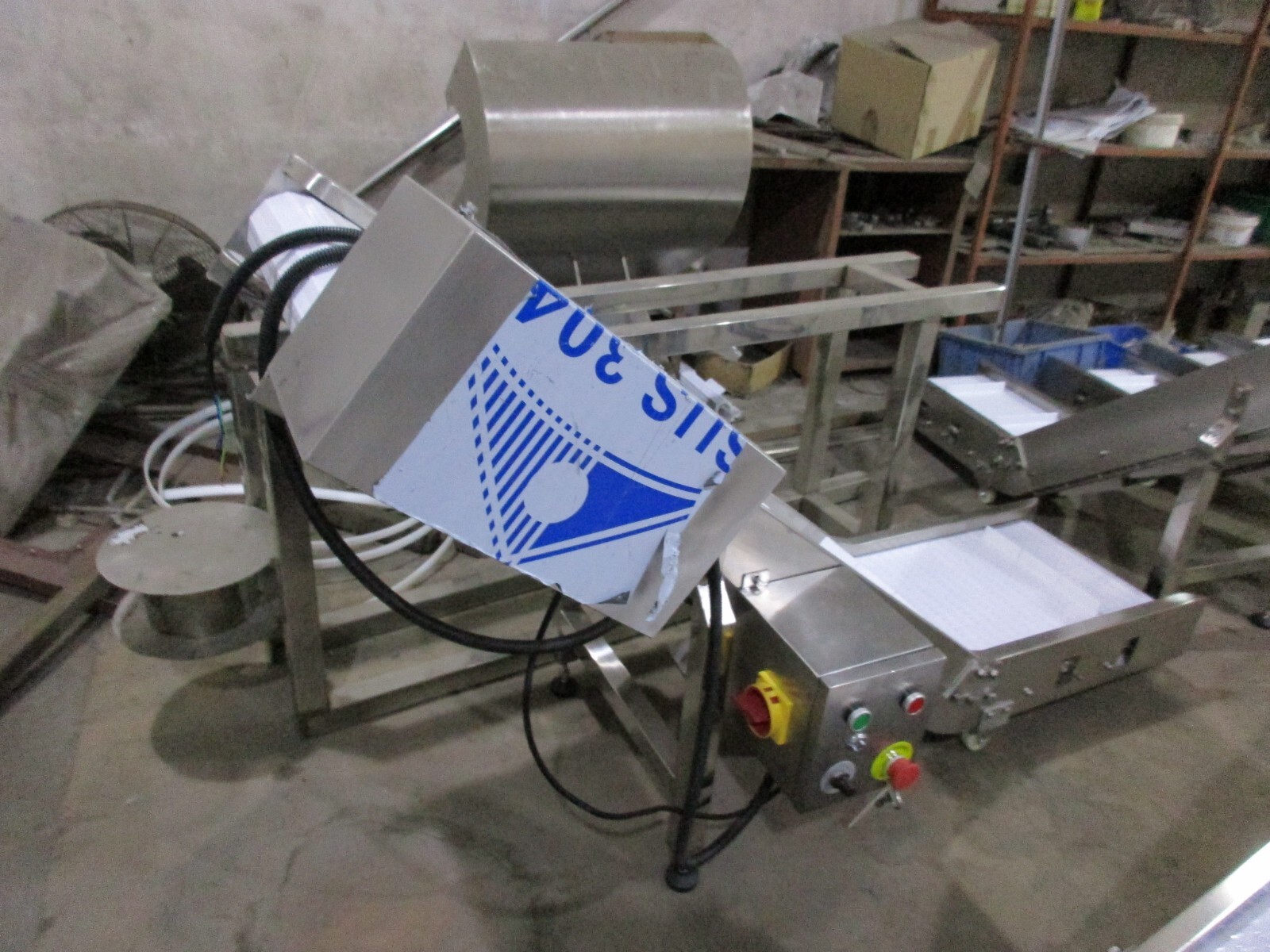

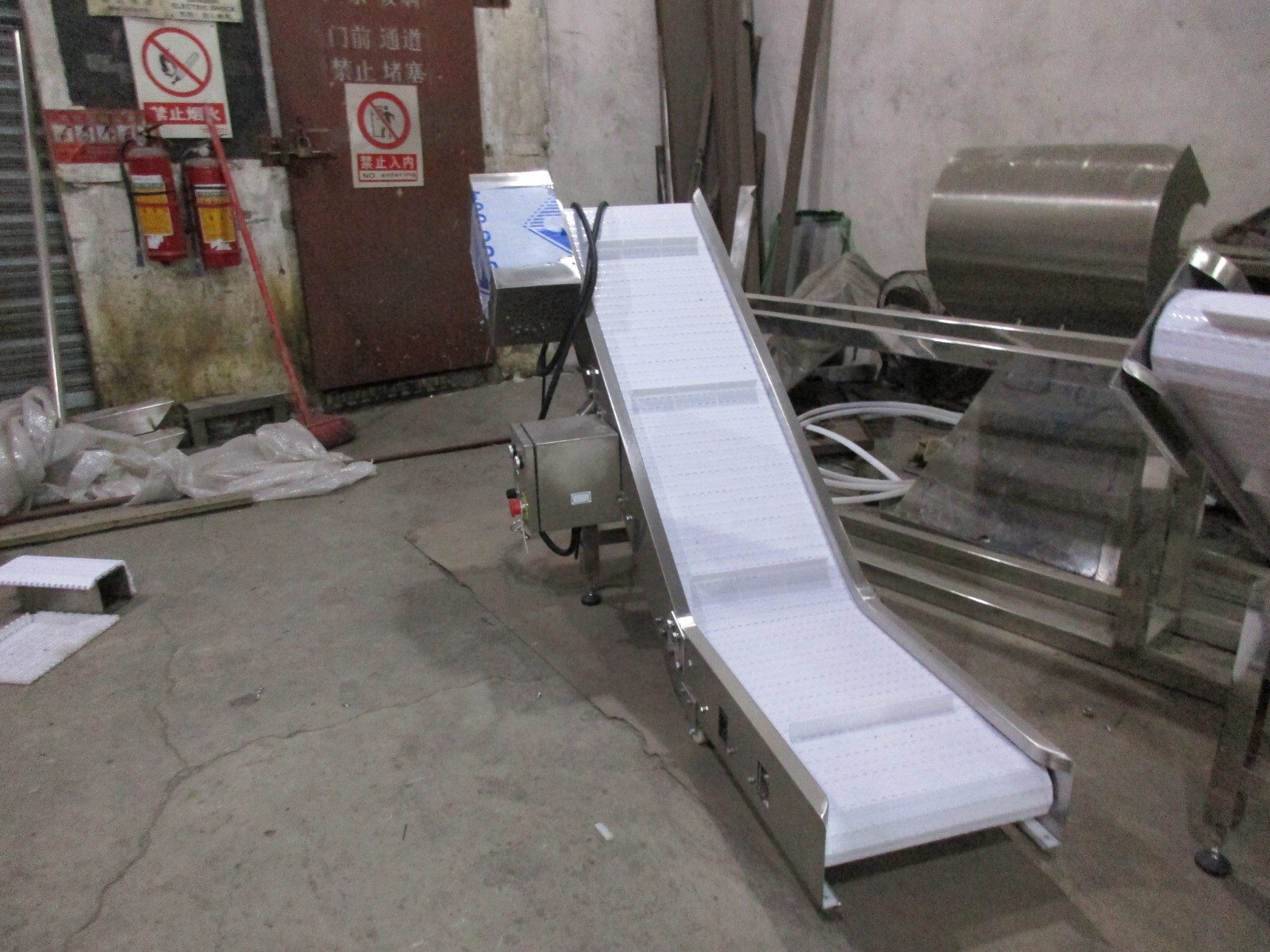

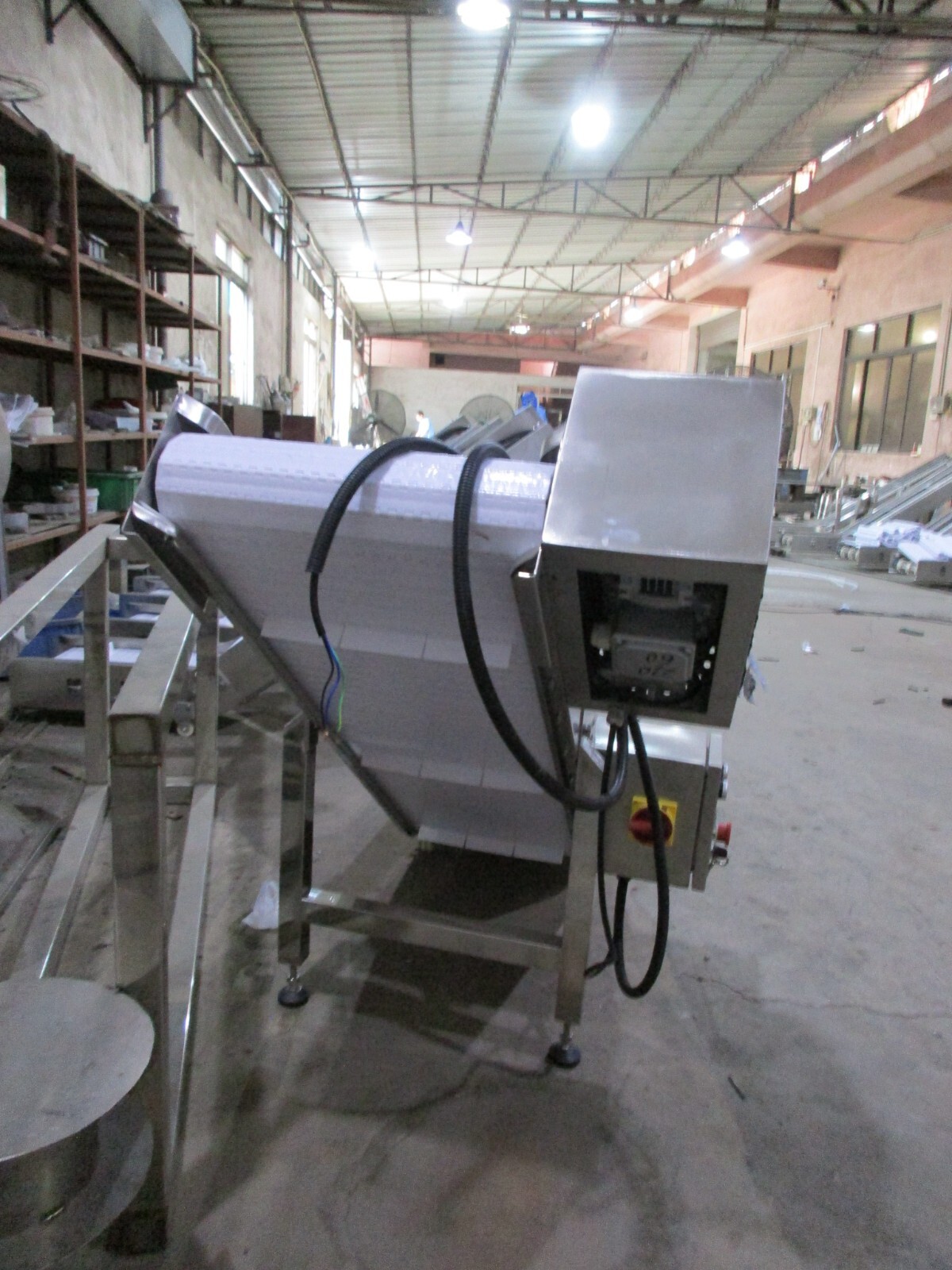

Stainless Steel Take Away Belt Conveyor

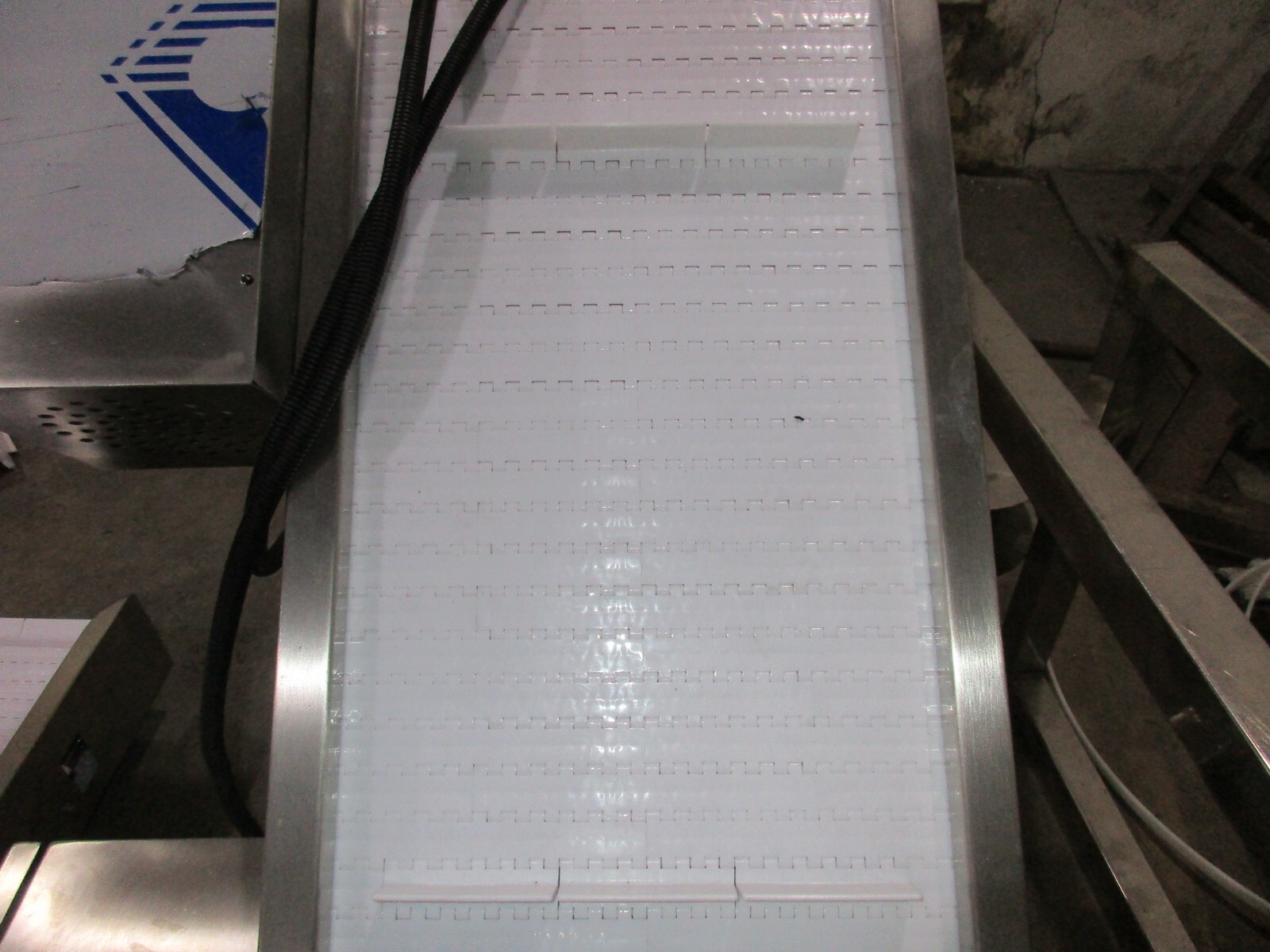

This conveyor is purpose-built for lifting finished bags off a packaging machine or check weigher and moving them to a collection table. It uses a 304 stainless steel frame and a food-grade polypropylene cleated belt with a 25mm middle baffle, so it is oriented toward food and bagged products. It is listed as new open box, and it needs three-phase 220V/380V power, so make sure your facility has that supply. The overall height is 966mm. If your line already runs on three-phase power and you need a cleated transfer, this conveyor is designed for that step.
Final recommendation by use case
Before you decide, pair the conveyor's length and belt material with the items you handle most often and the electrical supply in your facility.
- Compact assembly or packaging station: Choose the shorter TECHTONGDA flat belt for adjustable speed, guardrails, and a smaller footprint.
- Longer runs with heavier items: Choose the longer TECHTONGDA flat belt when travel distance matters more than belt width.
- Long path on standard 110V: Choose the variable-speed PVC belt conveyor for a long transport path without three-phase power.
- Lifting bags off packaging equipment: Choose the stainless steel take-away conveyor when a cleated, food-grade belt and 304 stainless steel frame match your line.
