The decision: printing, rewinding, or slitting?
When you're outfitting a packaging printing or converting workspace, the first question is whether the job is printing labels onto plastic bags, respooling narrow label rolls, or cutting wide self-adhesive web into strips. The four machines here range from a fully automatic paging unit to an industrial battery separator slitter, and the price spread runs from USD 1,129 to USD 15,000.
Quick take
- If you print labels on plastic bags as a standalone step, the fully automatic small paging machine is the only unit here that prints directly, and it's the least expensive option.
- For compact rewind and slitting work on narrow label webs, the roll slitting and rewinding machine keeps the footprint small and uses standard cores.
- For self-adhesive and PVC label stock that needs wider cutting, the 420 automatic slitter/rewinder steps up the scale.
- For specialized battery separator film conversion, the used TMAX JX-800X brings industrial roll-to-roll hardware.
Listed-price comparison
| Product | Listed Price | Price Bar |
|---|---|---|
| 420 automatic self-adhesive paper roll cutting slitting and rewinding machine | USD 4,960.00 | |
| Roll slitting machine, rewinding machine, roll label, rewinding machine label | USD 3,000.00 | |
| TMAX JX-800X Automatic Roll-to-Roll Battery Separator Slitter 2024 | USD 15,000.00 | |
| Fully automatic small paging machine for printing labels on plastic bags | USD 1,129.00 |
Decision matrix
- Direct digital printing on plastic bag labels → Fully automatic small paging machine (600DPI, 25-160mm pagination)
- Narrow label rolls up to 150mm → Roll slitting machine, rewinding machine (76mm core ID, 250mm outer max)
- Wider self-adhesive and PVC label stock → 420 automatic slitter/rewinder (up to 450mm feed, 16mm min slit)
- Lithium-ion battery separator film → TMAX JX-800X (master-roll unwind, multiple rewind stations)
Product notes

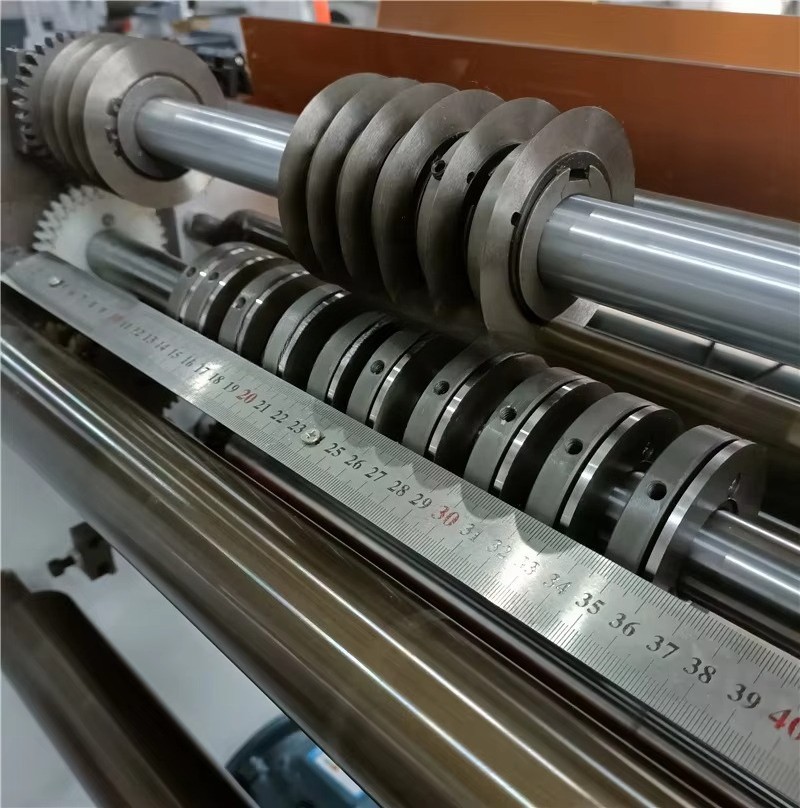

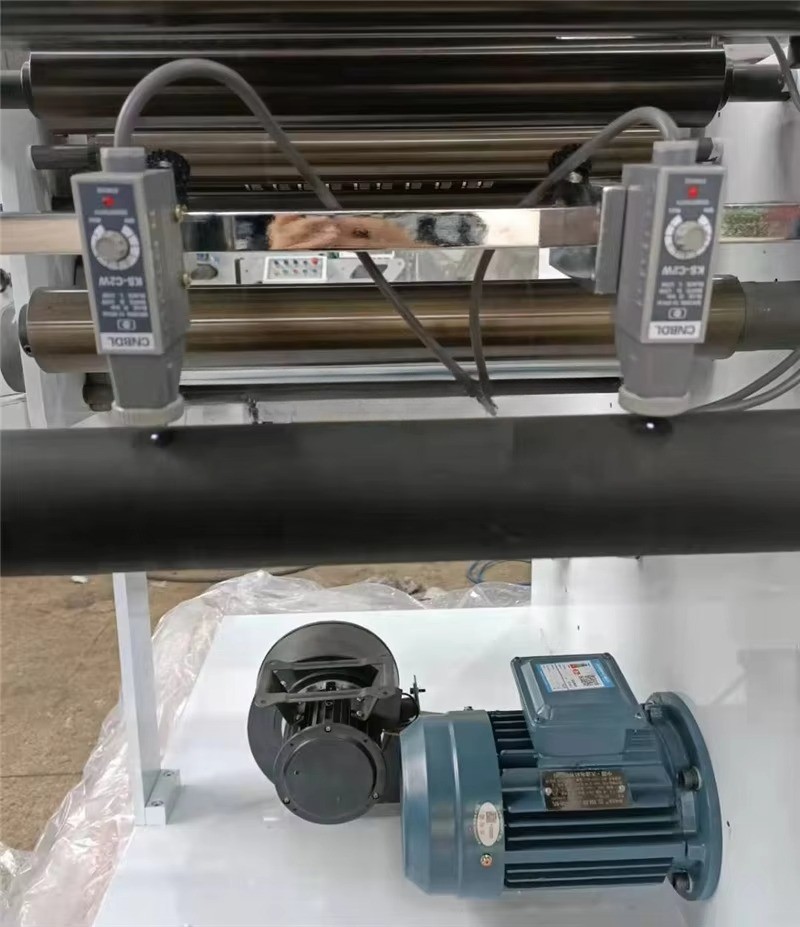

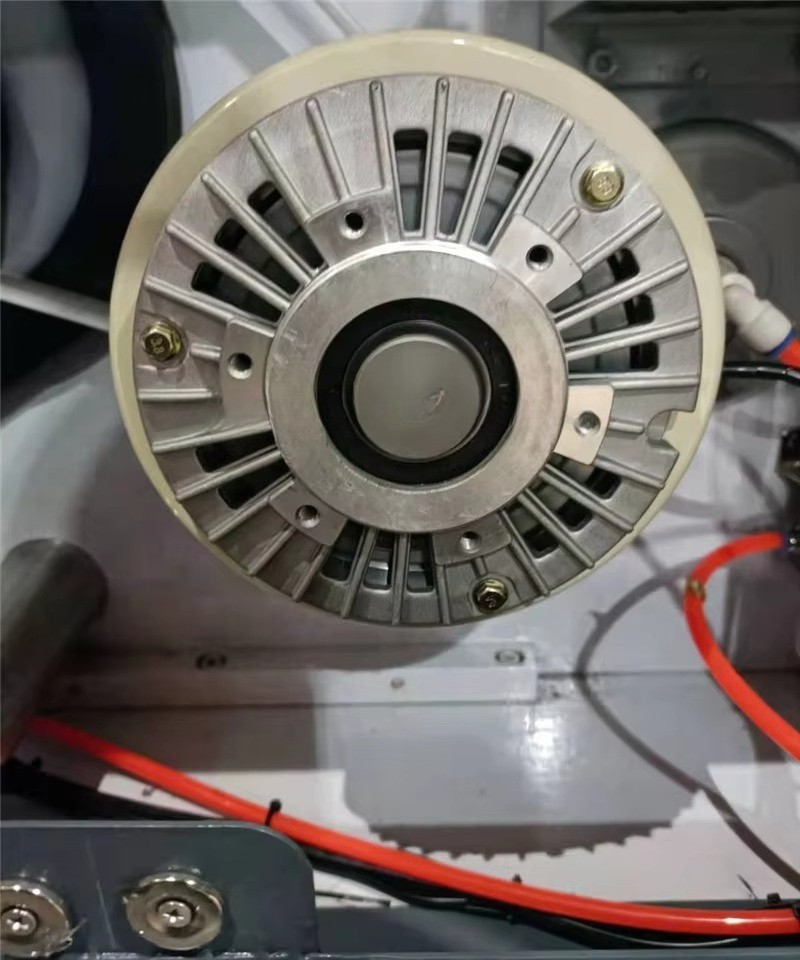

420 automatic self-adhesive paper roll cutting slitting and rewinding machine
The 420 model is built for shops that work with self-adhesive paper, PVC stickers, and epoxy labels. It pairs a 2kW motor with slitting speeds up to 120m/min, and the 420 version extends max feeding width to 450mm. Minimum slit width is 16mm, and both unwind and rewind diameters reach 500mm, which suits production runs that need to break wide stock into narrower rolls. The machine is new and from China, so it arrives as a fresh unit rather than used equipment.
The main limitation is physical footprint and weight: dimensions run about 1240×1070×1300mm and weight is roughly 600kg, so it needs dedicated floor space. It also runs on 220V 1-phase 50Hz power.

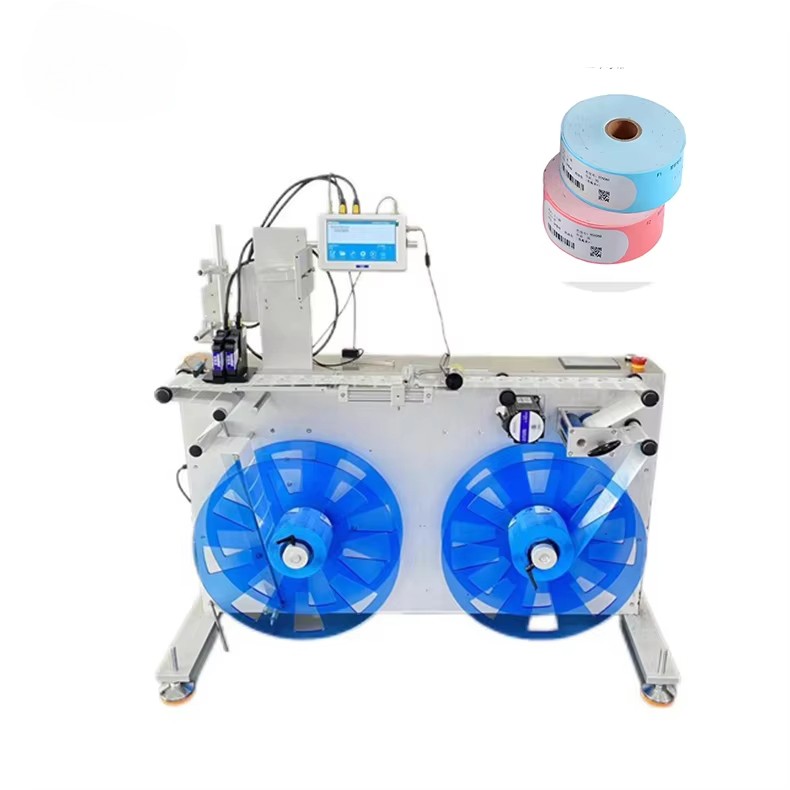

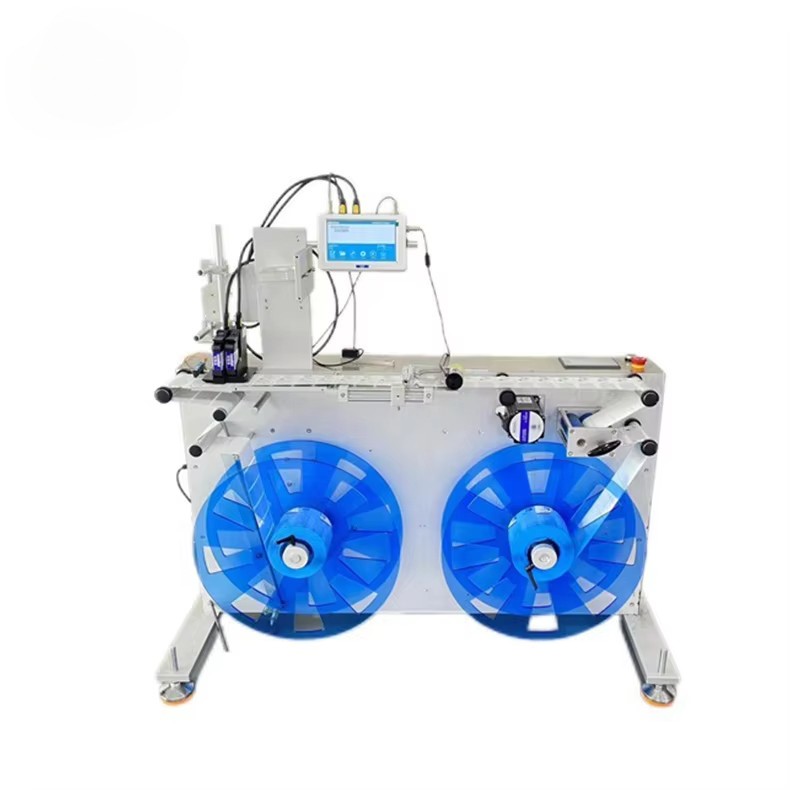

Roll slitting machine, rewinding machine, roll label, rewinding machine label
This compact label rewinder is aimed at label rolls no wider than 150mm. It handles standard 76mm label roll inside diameters and accepts outer diameters up to 250mm, so it's a practical fit for garment tags, small packaging labels, and reels that need to be re-spooled before application. Because it's a rewind-focused unit rather than a full-width slitter, it keeps the work area small, with a machine size of about 660×400×510mm.
The limitation is narrower capacity: the listed material width max is 150mm, so it is not set up for larger webs.

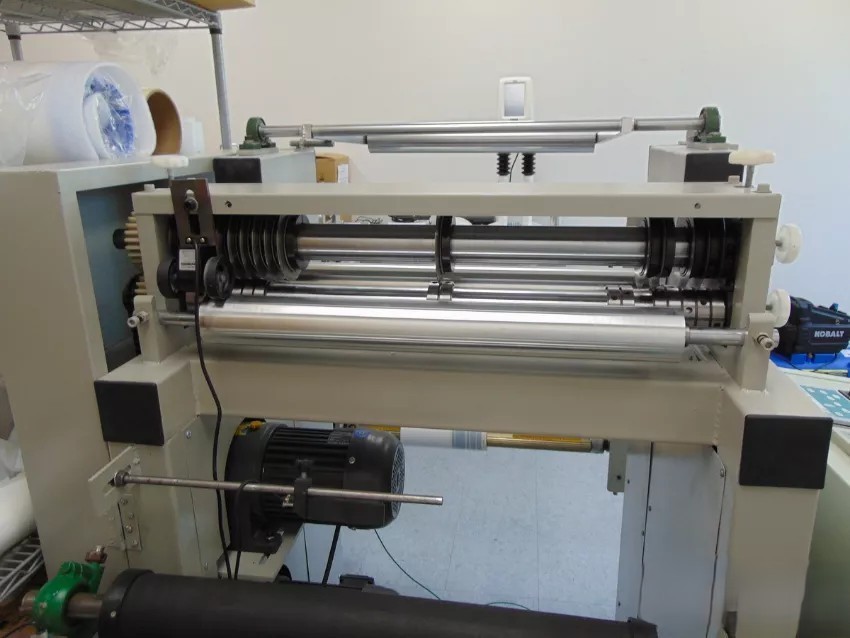

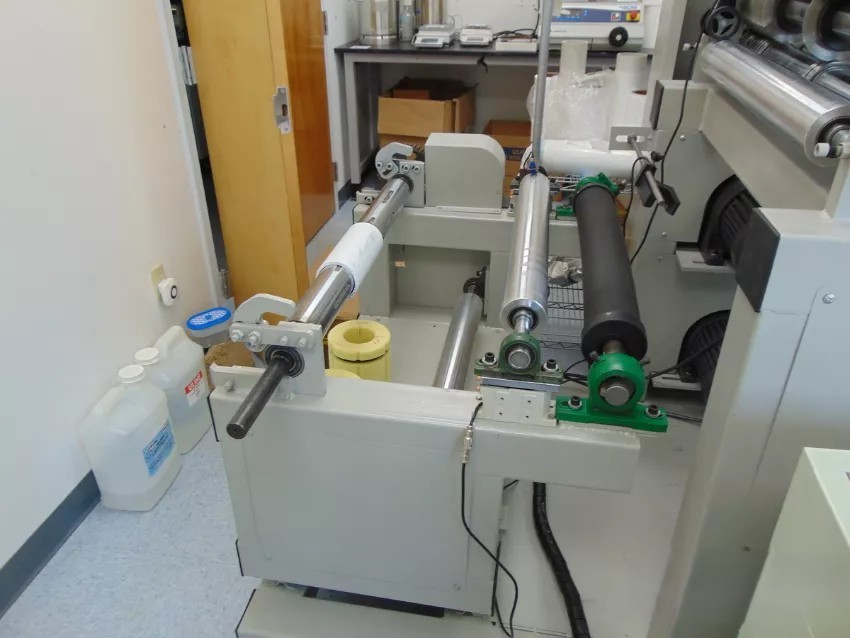

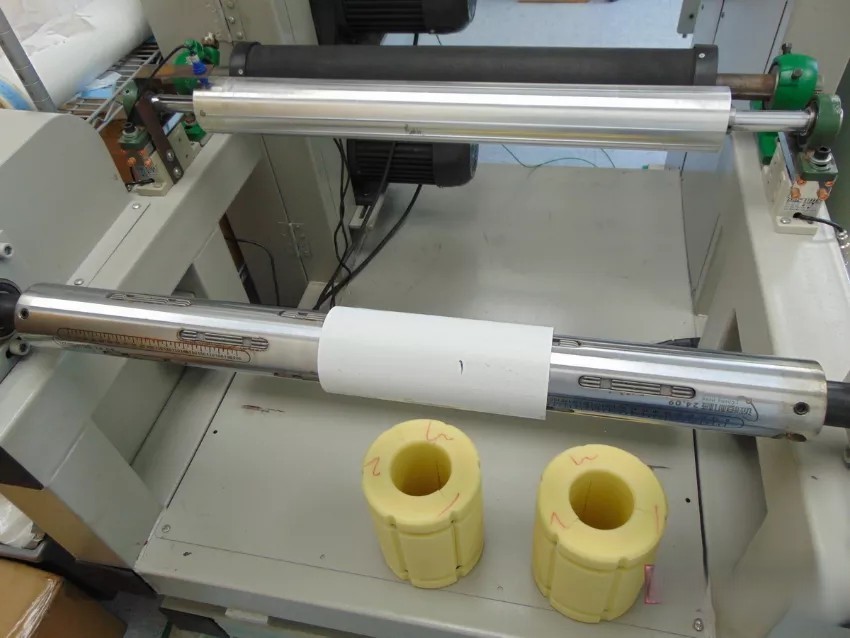

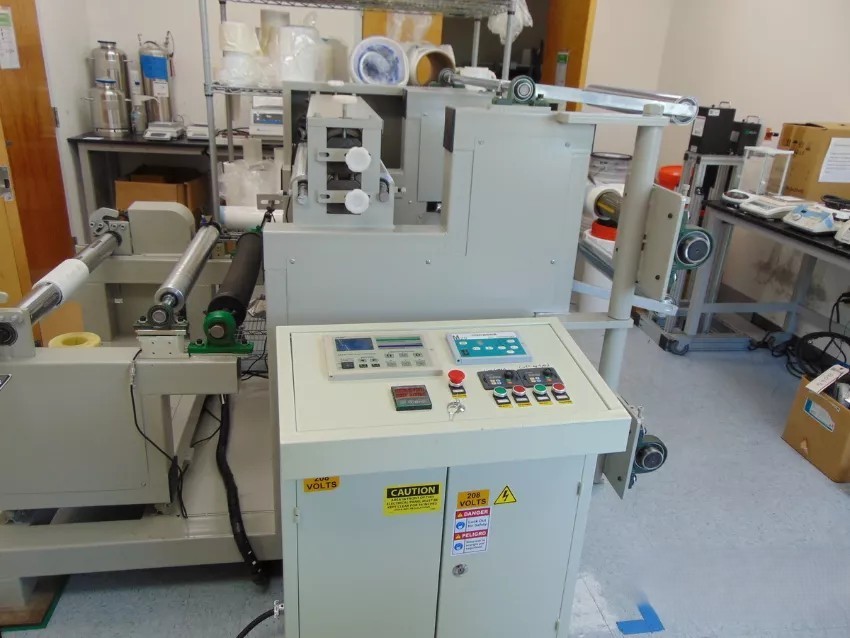

TMAX JX-800X Automatic Roll-to-Roll Battery Separator Slitter 2024

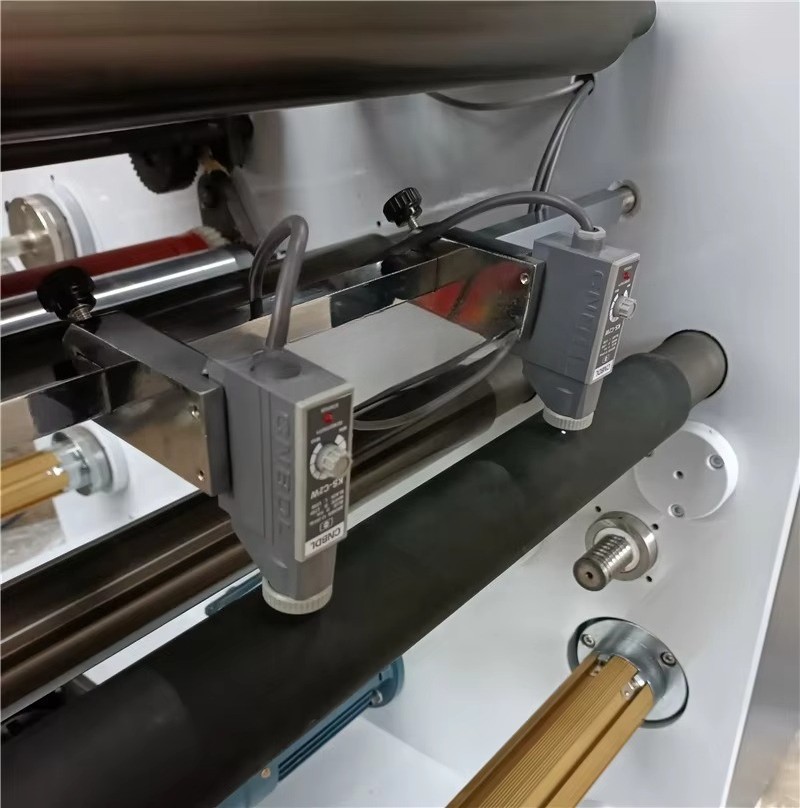

The JX-800X is a used industrial roll-to-roll slitter built for lithium-ion battery separator film. It includes a master-roll unwind section, slitting section, multiple rewind stations, web/tension control hardware, operator control panel/HMI, and pneumatic and drive components. That makes it a different class from the desktop-style units in this comparison.
The limitation is condition: it's explicitly listed as used. It's also aimed at separator film rather than general label stock, so its application range is narrower.

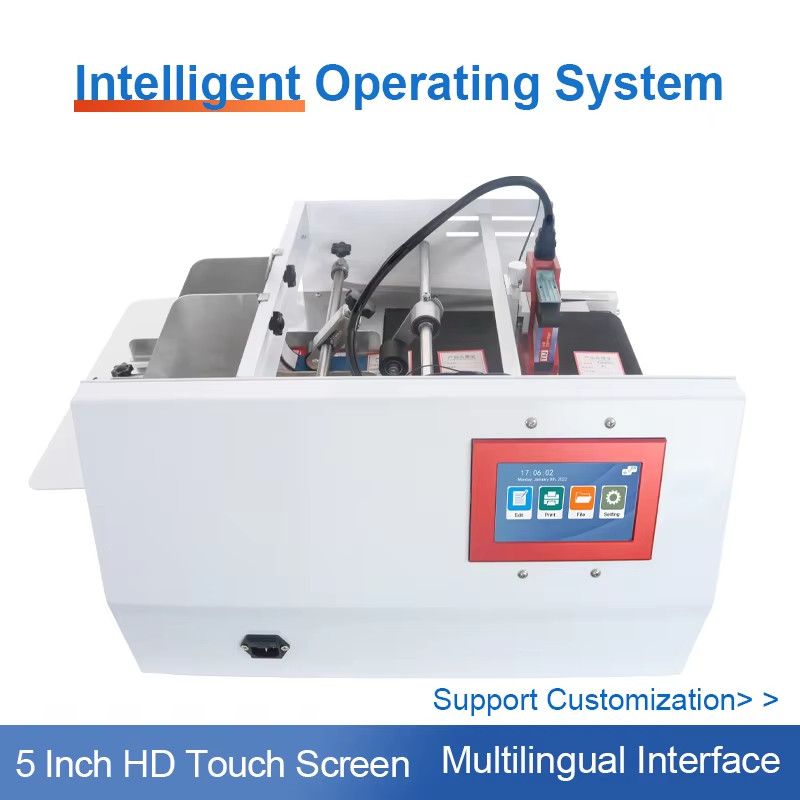

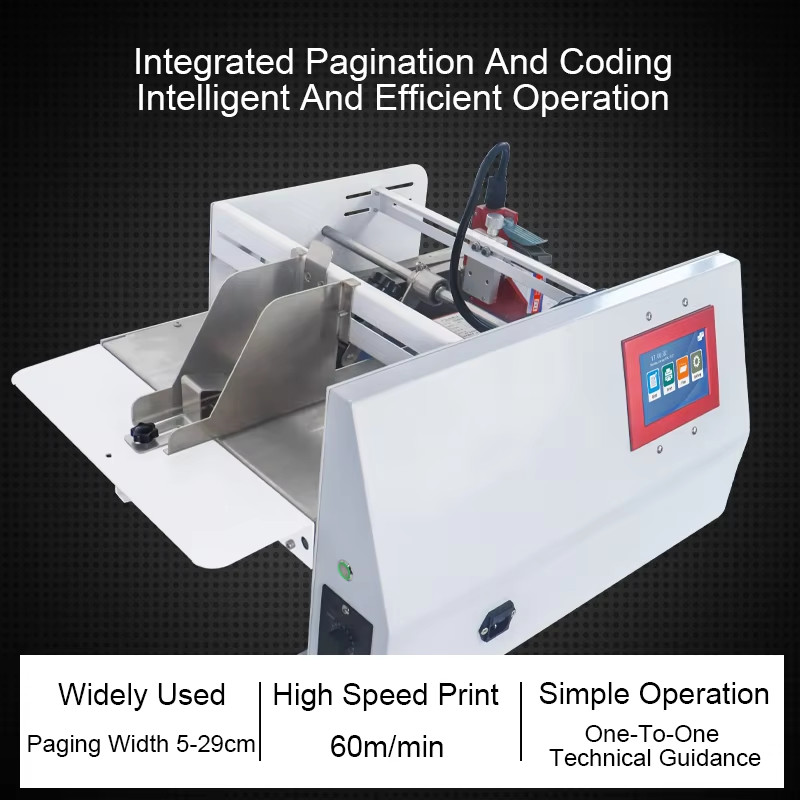

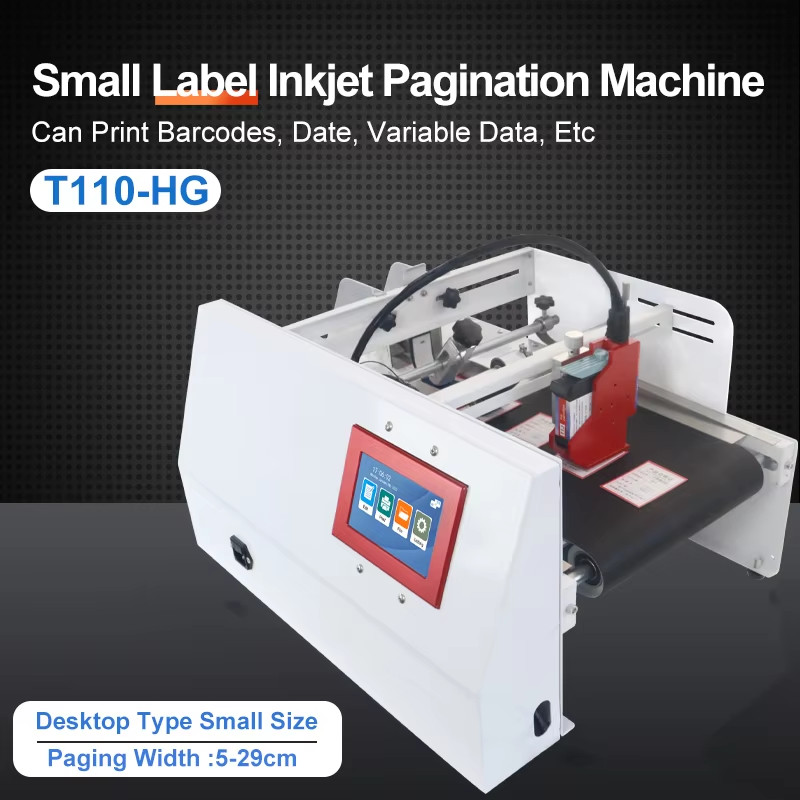

Fully automatic small paging machine for printing labels on plastic bags
This is the only machine in the group that prints directly onto plastic bag labels rather than just slitting or rewinding. It's a fully automatic small paging unit with a 600DPI print resolution and a pagination size range of 25-160mm.
The limitation is that it's not a slitter/rewinder-it fills a printing role, not a converting role. The listed print speed of 2-12.7mm is a separate spec from slitting speed, and if you need printed rolls to be rewound, you'd pair this with a separate rewinder.
Final recommendation by use case
- If your operation is digital printing on plastic bag labels, the Fully automatic small paging machine is the printing-focused pick.
- For narrow label rewind work with standard 76mm cores, the Roll slitting machine, rewinding machine matches the scale.
- For wider self-adhesive paper and PVC labels that need slitting, the 420 automatic slitter/rewinder fits the capacity.
- If the job is battery separator film conversion on an industrial scale, the TMAX JX-800X is the specialized, used option.
